Greetings everyone,
I’m needing a favor. Does anyone have an exploded view part sheet for a Proto 2000 F3A? I need to find the part #(s) for the rear pair of air hose assemblies - both right and left pairs.
Although I have a NYC shell (Walthers #920-41238 - NYC #1623), the part should be pretty universal for all shells. Any help would be greatly appreciated. Thanks.
Tom
If they did it like the E8, those parts came with a package containing all the miscellaneous items.

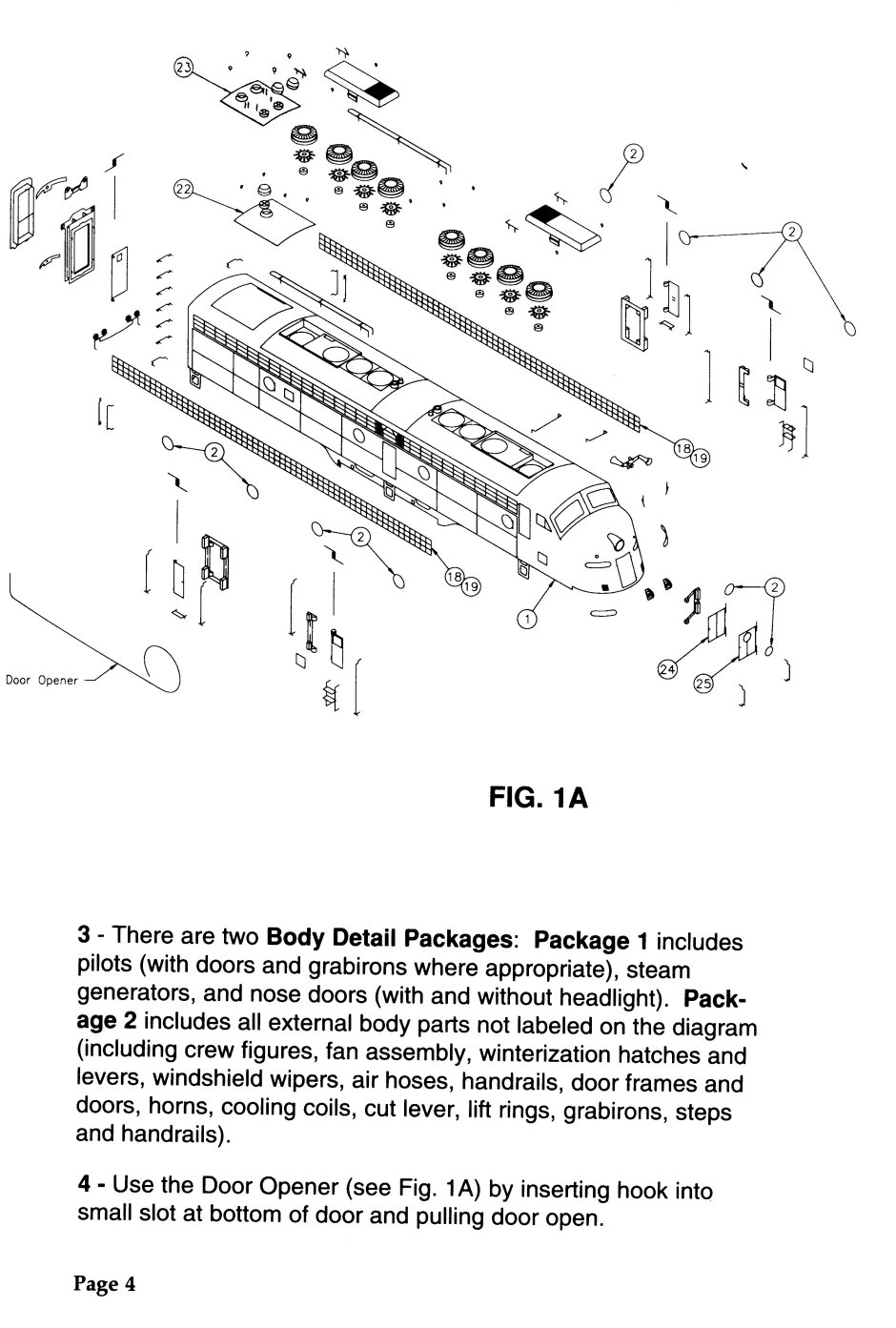

Diagram for E8 is: http://www.hoseeker.org/lifelikeenginediagrams/lifelikeproto2000emde8pg4.jpg

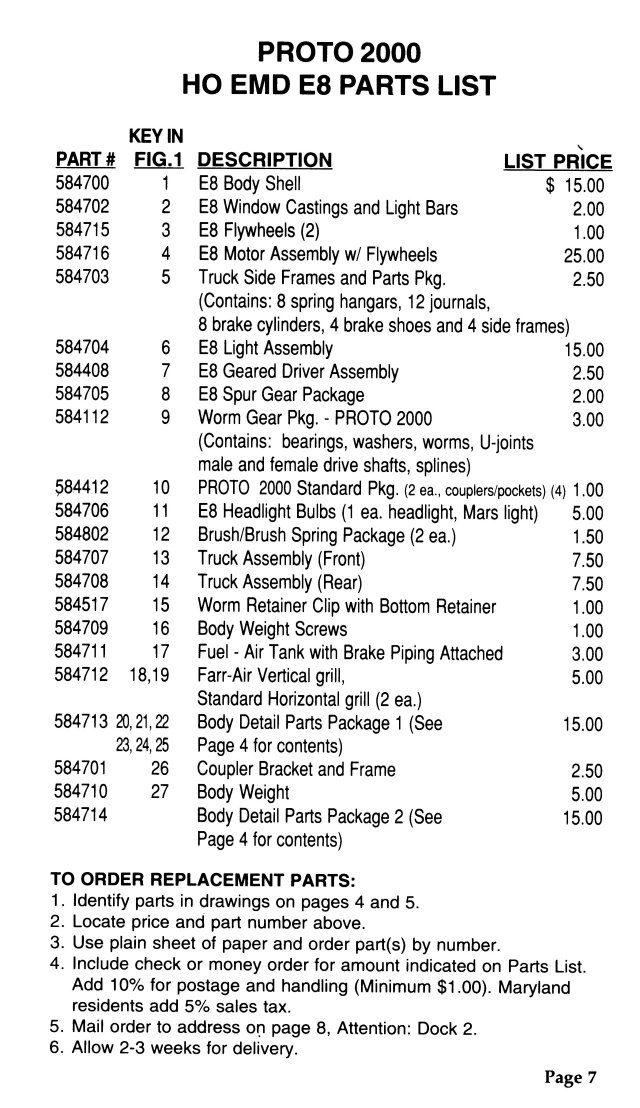

Body detail parts: http://www.hoseeker.org/lifelikeenginediagrams/lifelikeproto2000emde8pg7.jpg (last item on list)
Can you use the DetailsWest hoses: http://www.walthers.com/exec/search?quick=mu+hoses instead?
I will normaly replace most of these detail parts especially the MU hoses suppied on the P2Ks. Detail Assoc and Details West work well. I happen to like the brass Overland or the white metal Details West. These can be formed to any desired shape rather than those short, straight ones supplied.
Details West 36"/ 3 cluster MU-294 or 36"/4 cluster MU-295
Several companies sell M/U and air hoses as detail parts. Why not try finding a couple of those (start at Walthers, then see if you can find a better deal).?
