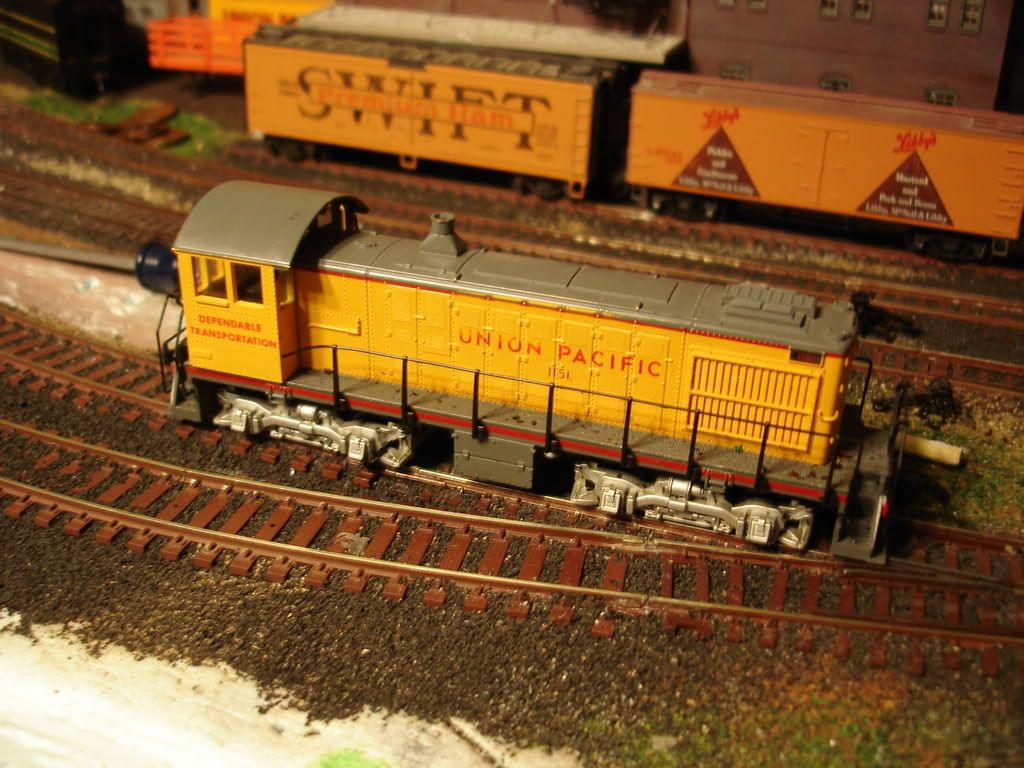

Need coupler help on older Altas switcher.

Model Railroader General Discussion (Model Railroader)
1

There’s a screw on the bottom which I have out but nothing feels like it comes loose and the hook couplers have a screw from the top. Don’t want to damage loco since it runs great.

Thanks,

Fred

2

Fred those are pins you are referring to. They should come out from the bottom.

http://hoseeker.net/assemblyexplosionAtlas/Assembly%20Explosion%20Atlas%20S2%20S4.jpg

http://hoseeker.net/assemblyexplosionAtlas/Assembly%20Explosions%20Atlas%20S2%20S4%20pg1.jpg

Here are files you can save on your H/D.

http://www.atlasrr.com/pdf/S4%20SWITCHER%201.pdf

http://www.atlasrr.com/pdf/S4%20SWITCHER.pdf

Jim

3

Thanks, Jim.

I will print a copy and go and replace a coupler or two.
