Hello All

After a few weeks of building the new layout I decided to just run trains this weekend.

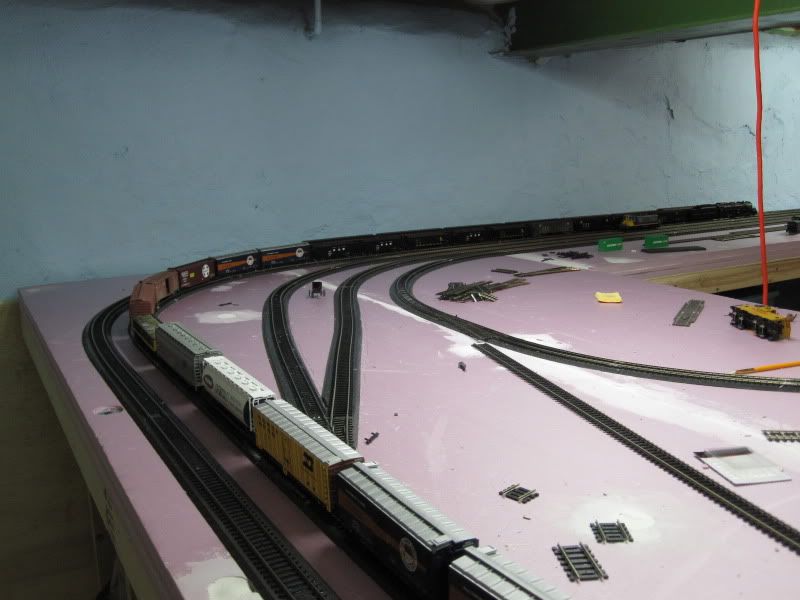

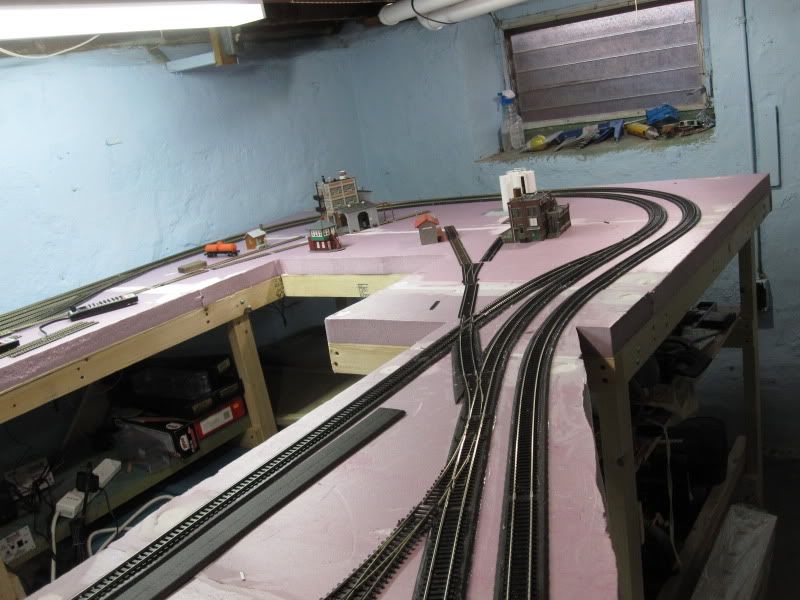

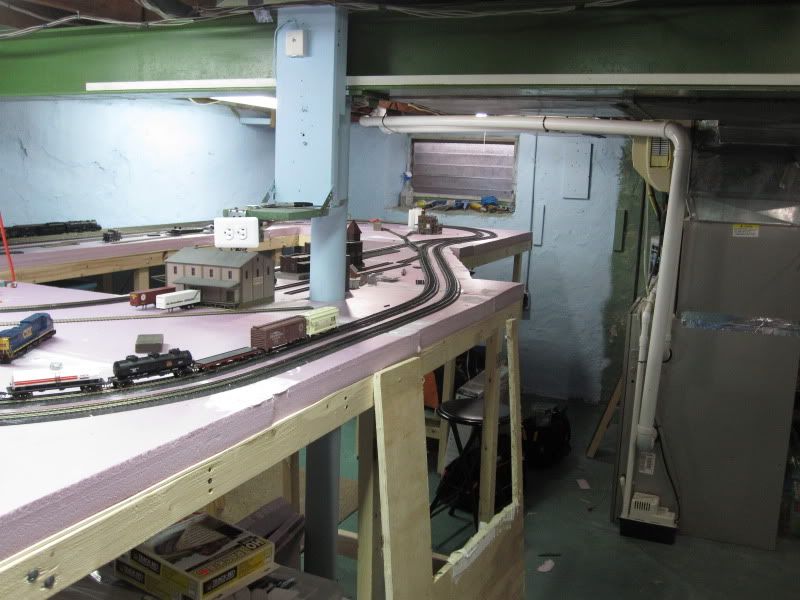

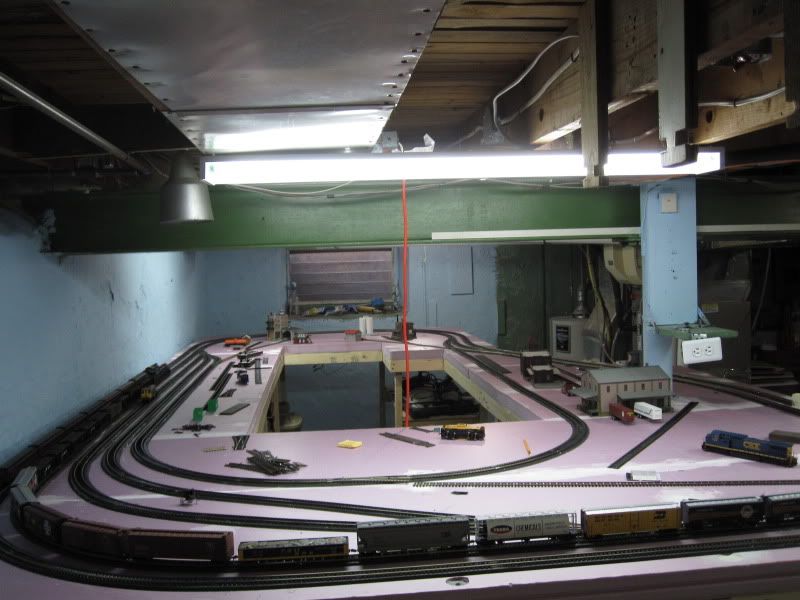

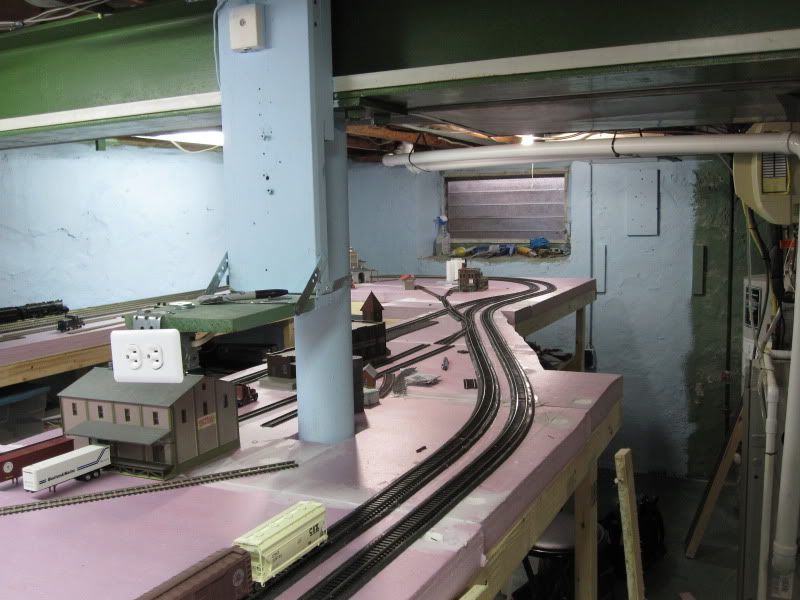

Here’s some pics of the layout to date. It’s 15 feet long. 8 feet wide on one end which tapers to 6 feet on the other end to allow service access to the heating/cooling and hot water.

2

3

Color me jealous [:D]

4

Progress is always good. Looks good.

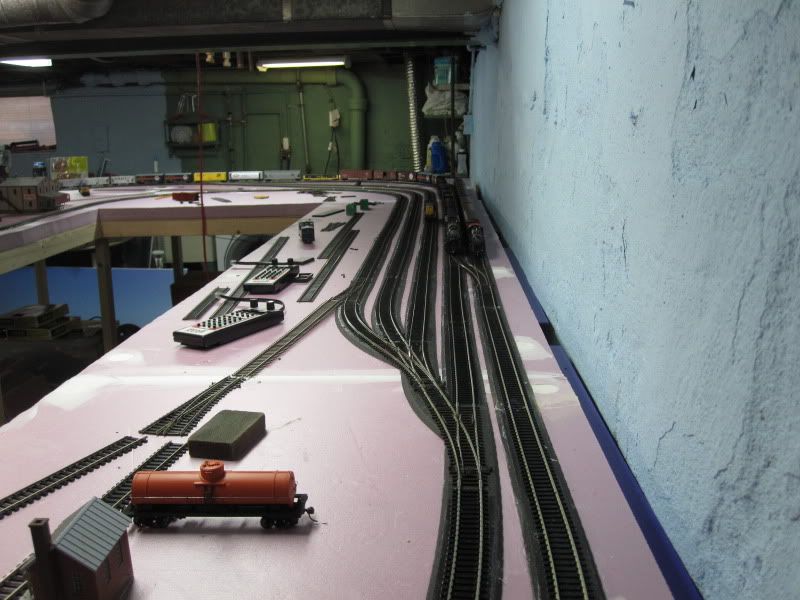

In the photo of the yard (third one down), is the first switch in the yard a 3-way? It appears to flow nicely. Are the other switches #4’, 6’s or something else?

Thank you,

Richard

5

Thanks

All of the turnouts are Peco’s. The first noted is a 3 way and was perfect for the application and saved space vs a ladder. The radius is 36 inch on the 3 way.

http://www.hobbymasters.com/pecohoscalecode100streamlinethree-wayturnouttrack.aspx

The crossovers are peco medium radius turnouts (36 inch radius) and all others are peco small radius turnouts which are 24inch radius.

6

Looks GREAT, good work. Are you planning to add any background/backdrops or leave it sky blue?

7

Thanks

For 10 feet of it I plan on re-using the backdrop I made from a panarama of Philadelphia. It’s printed on vinyl and mounted on PVC sheet so is reusable. Here’s a few pics of it on the last layout:
