Working on control panel boards. The new layout will have 5 control panels which will contain DCC controllers/boosters/lighting power supplies, etc. On the previous layout I had planned to centralize all the DCC controller/boosters in one panel but I figured out that would greatly exceed the recommended track bus runs (even with using 10GA track power bus wiring) so I ended up distributing them in 4 locations around the layout. The new layout will have 5 control panels.

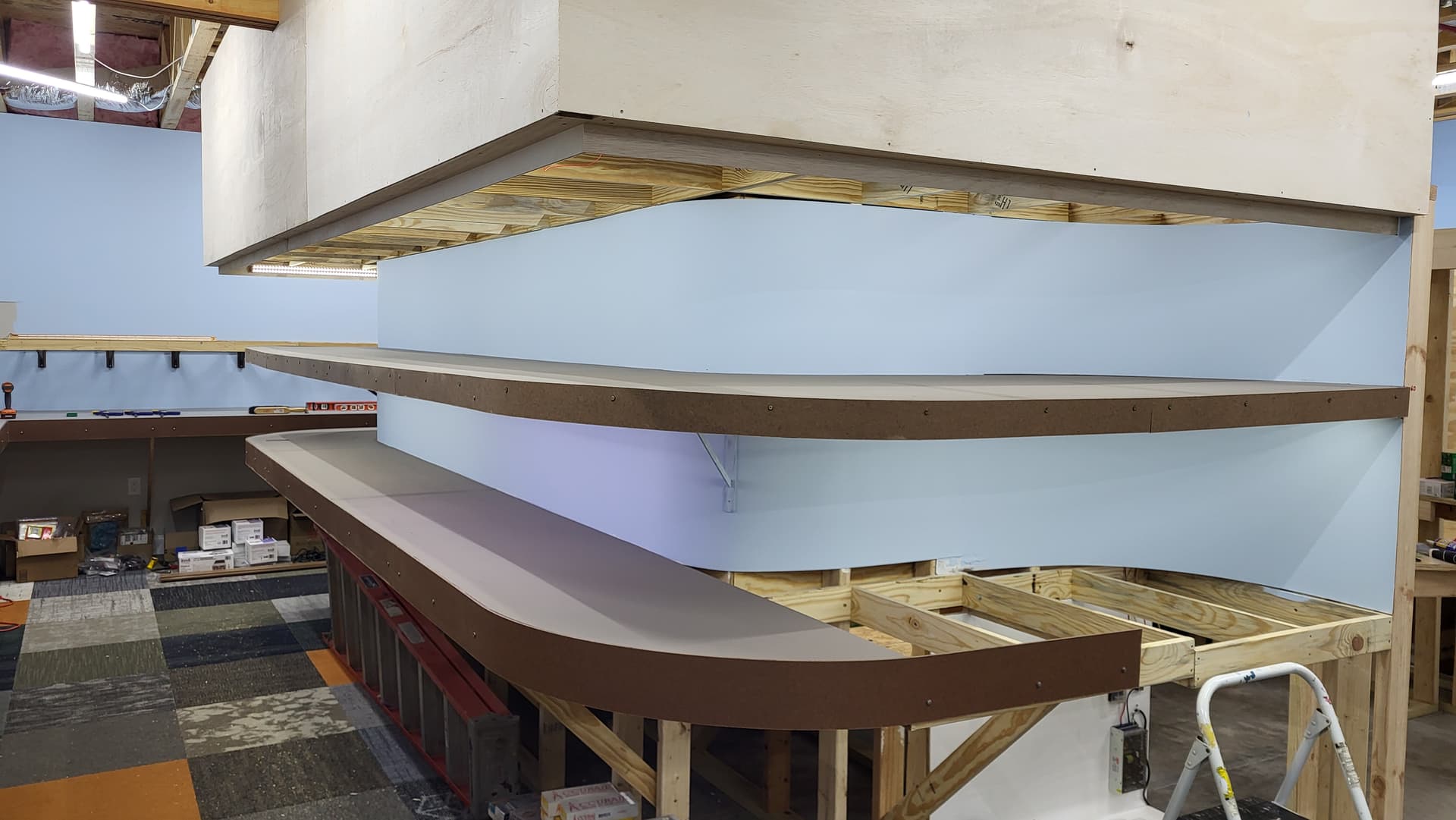

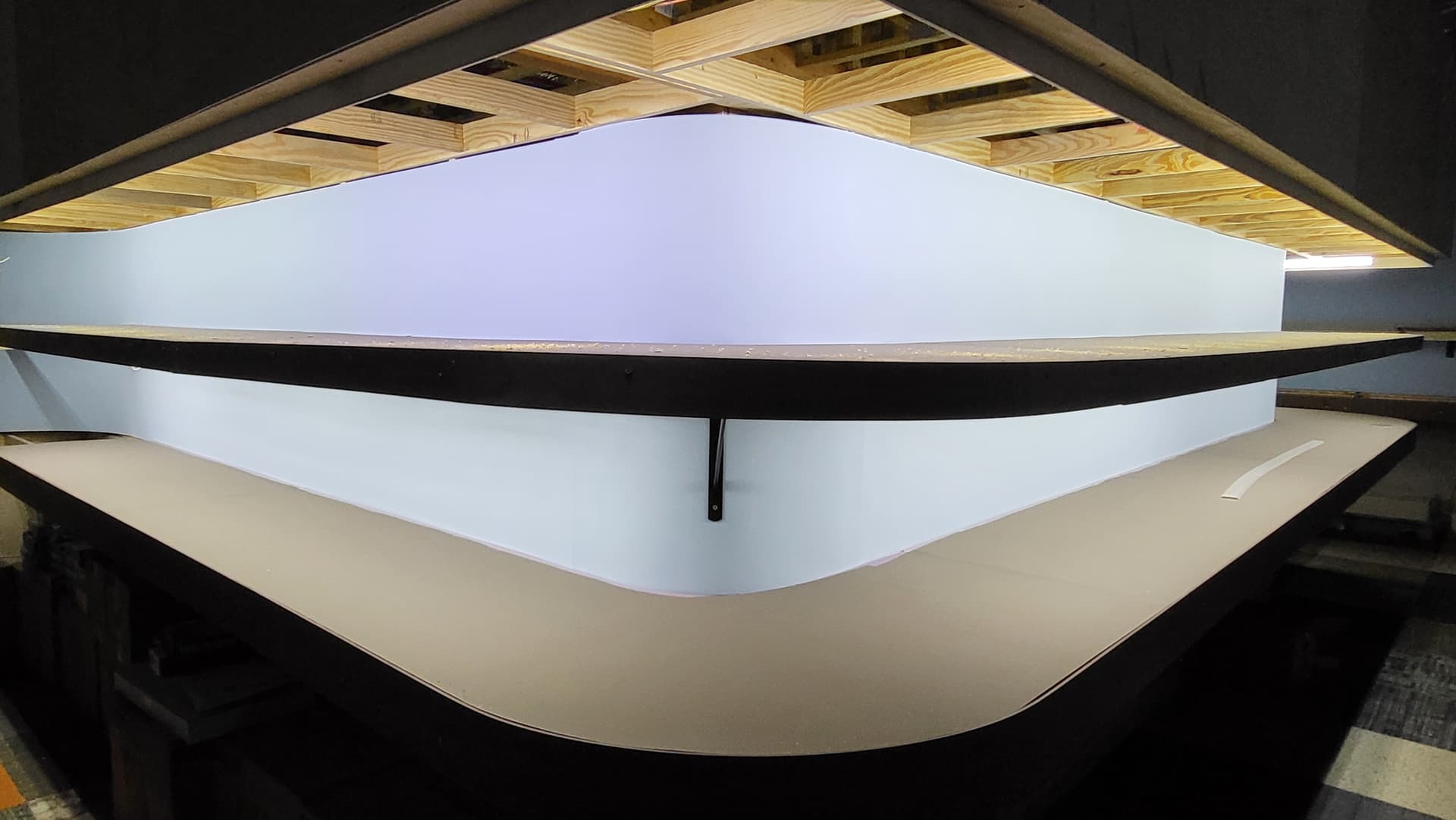

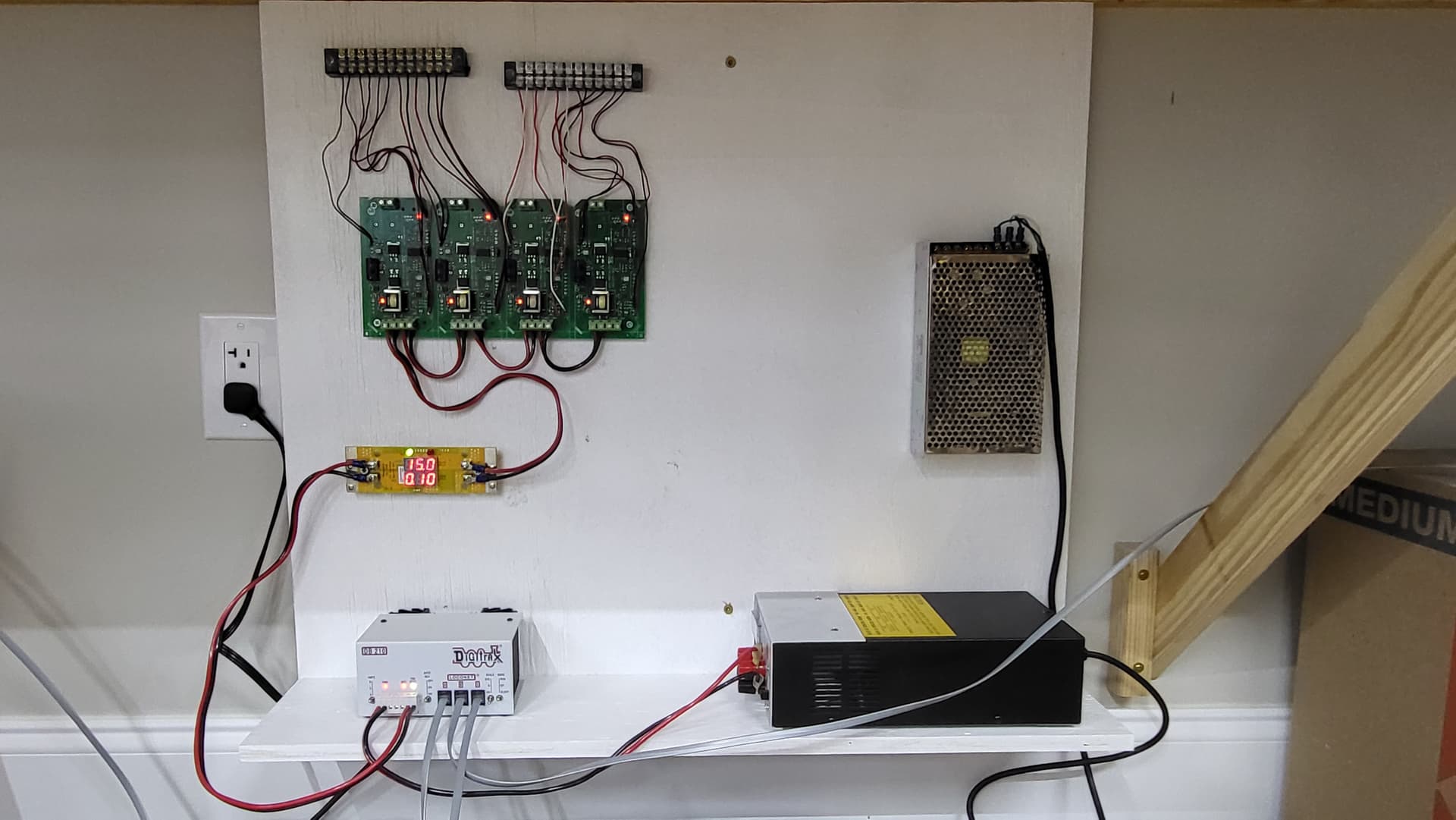

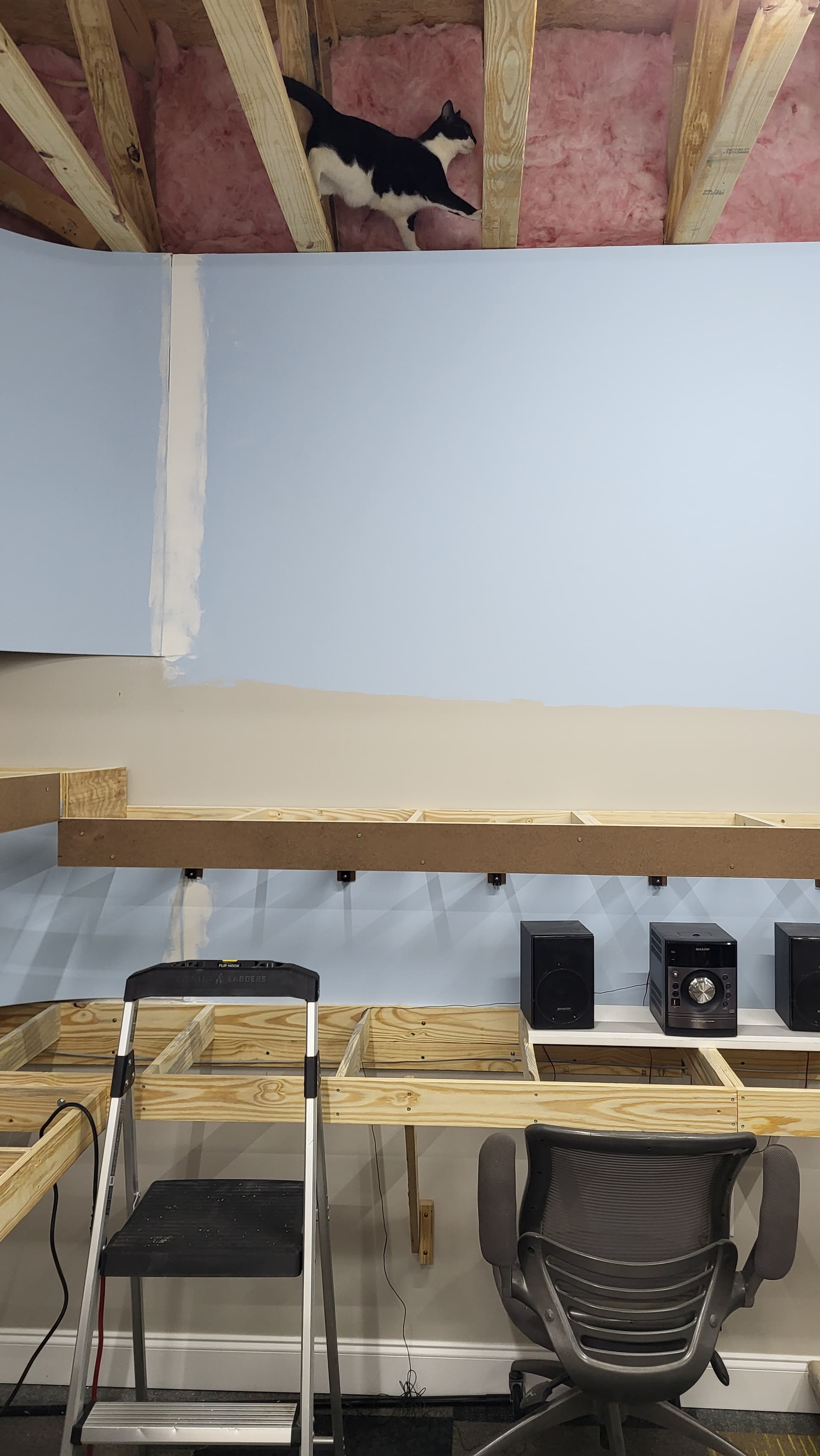

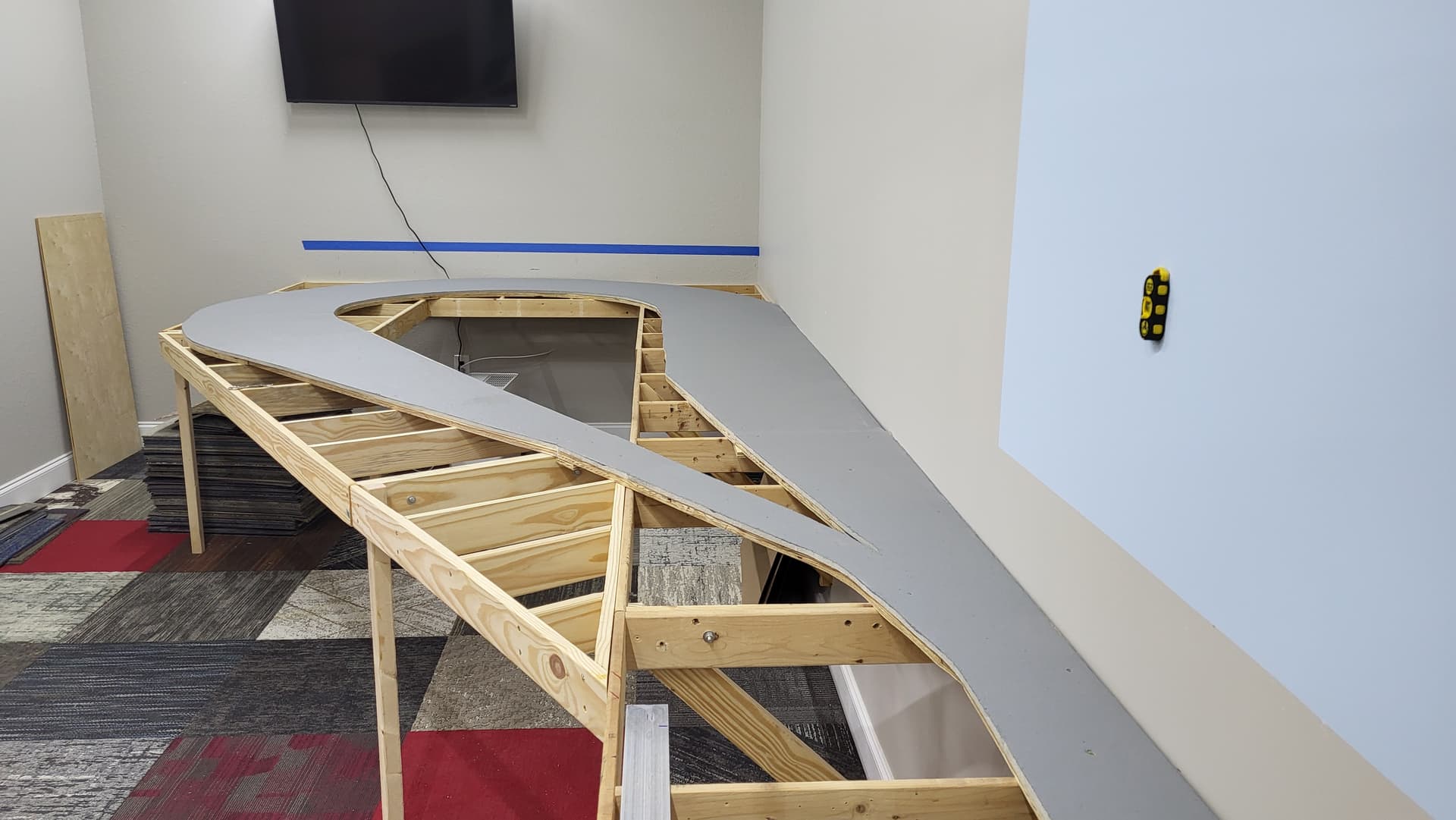

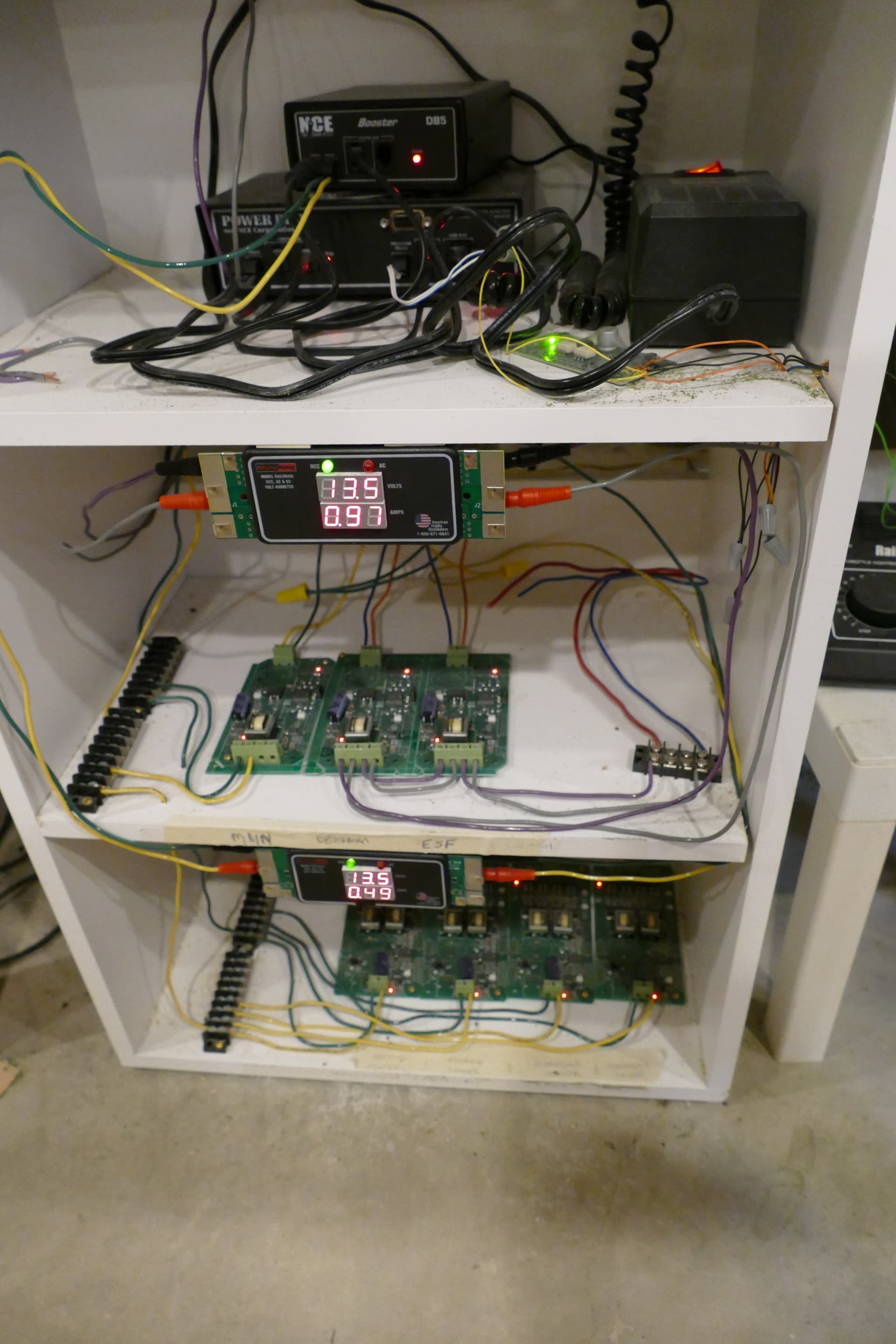

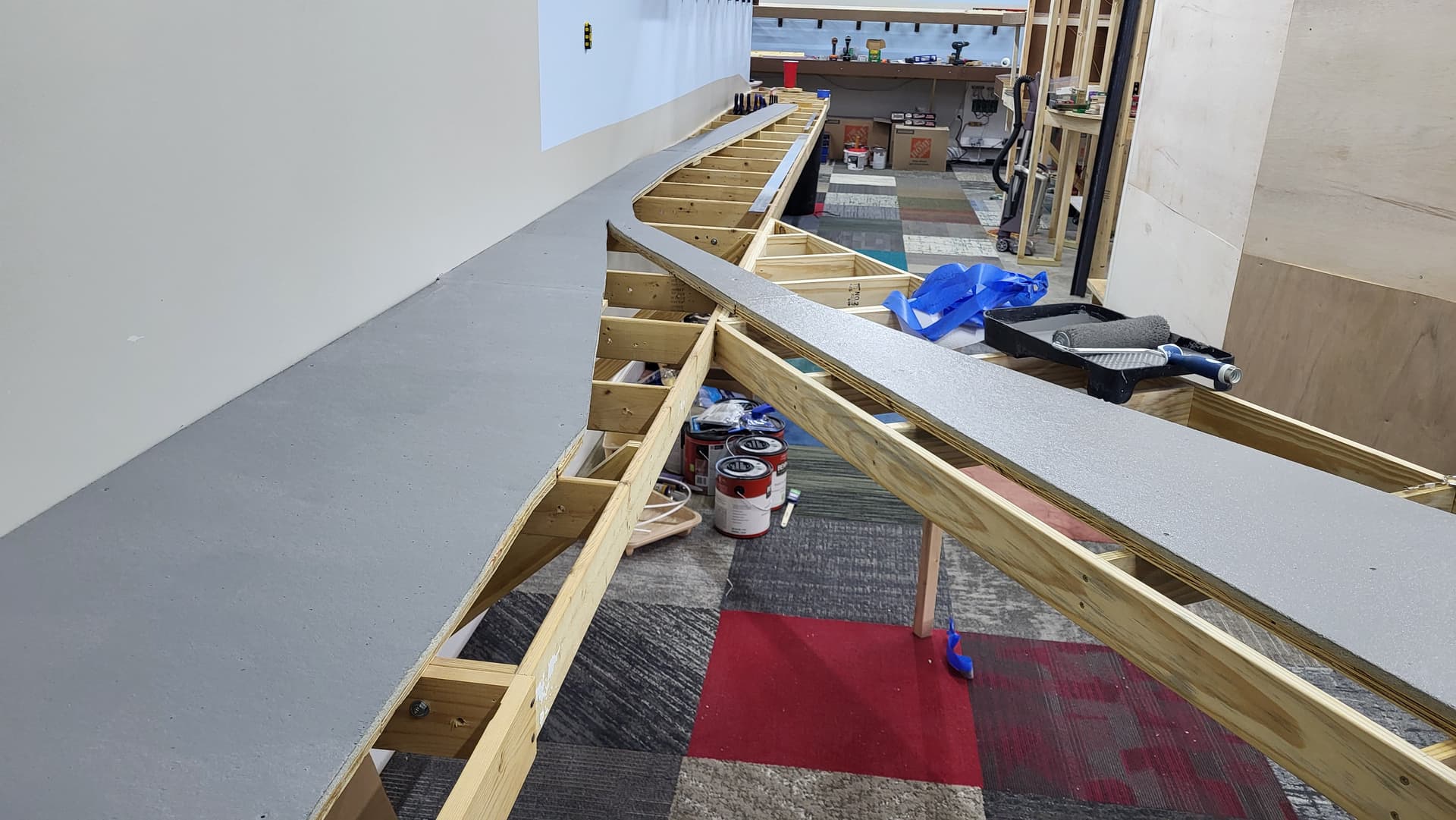

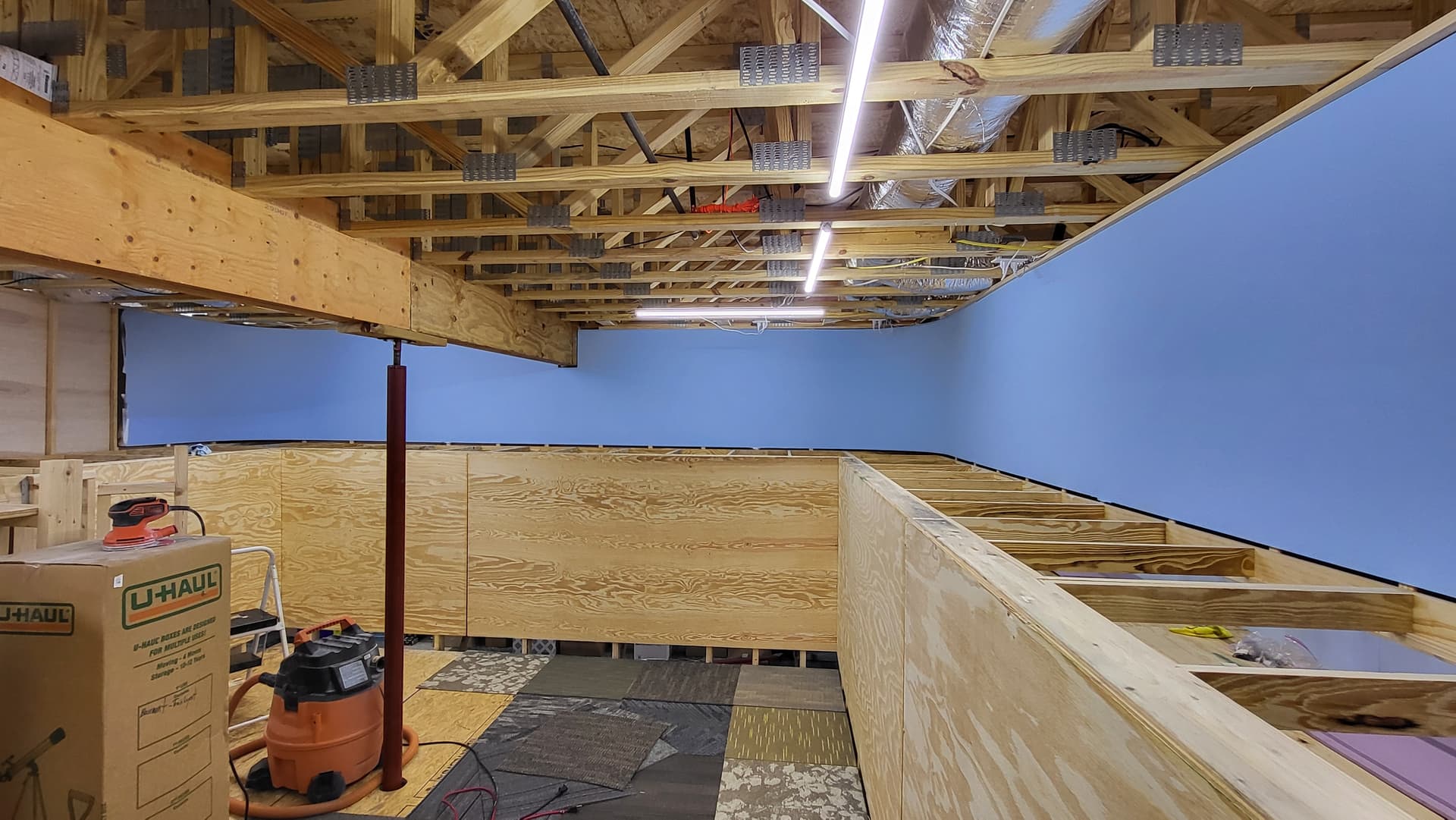

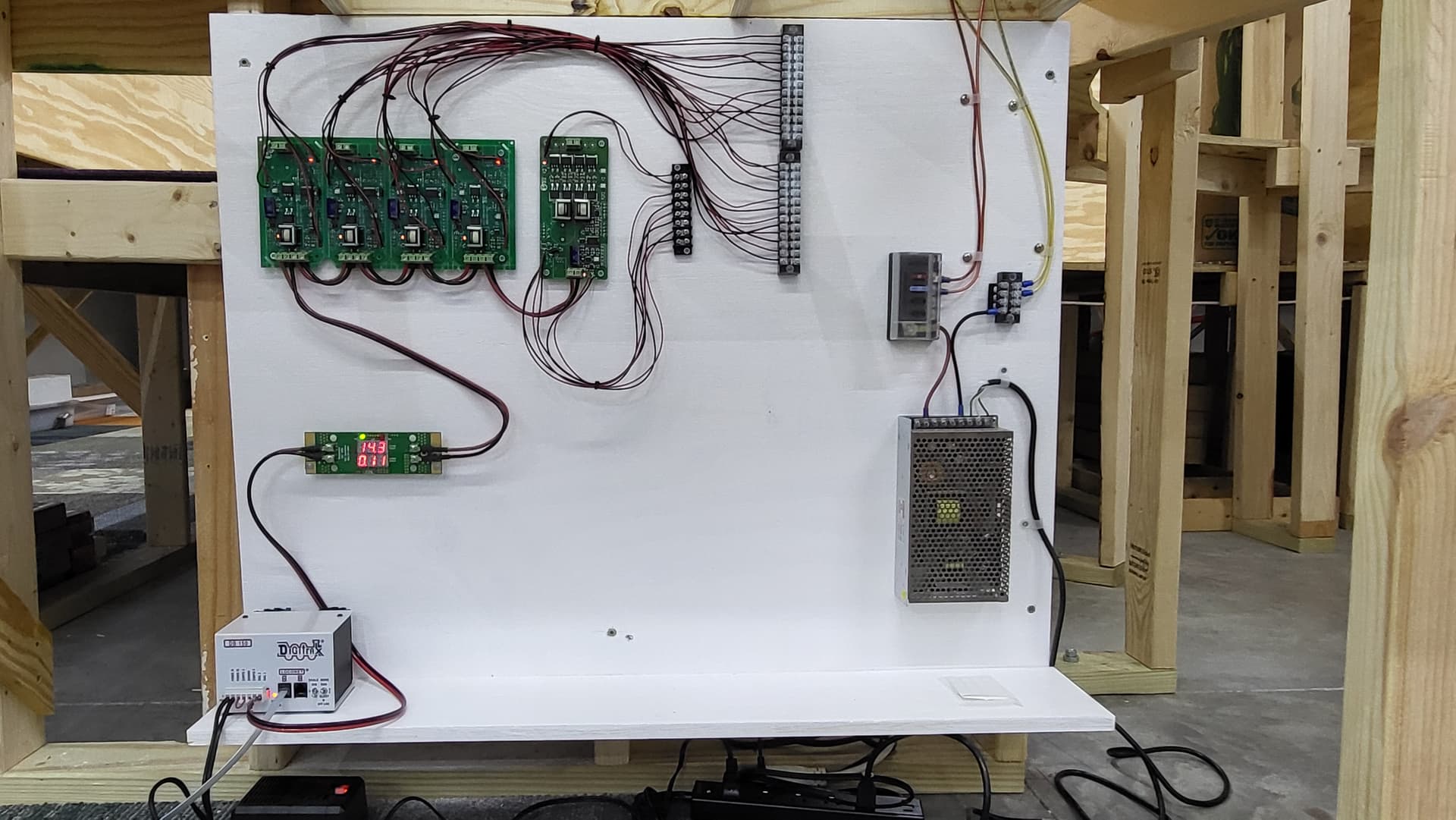

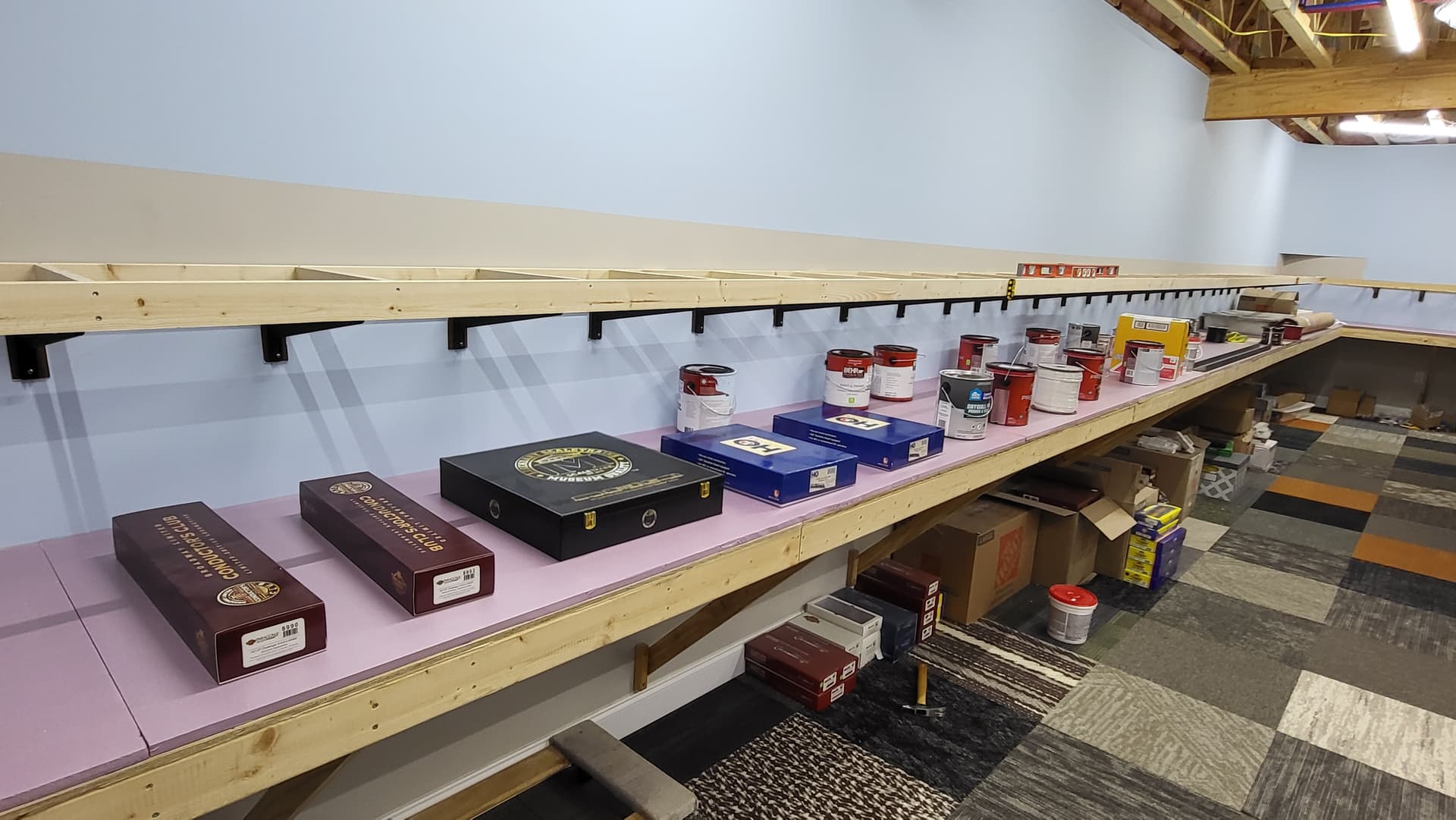

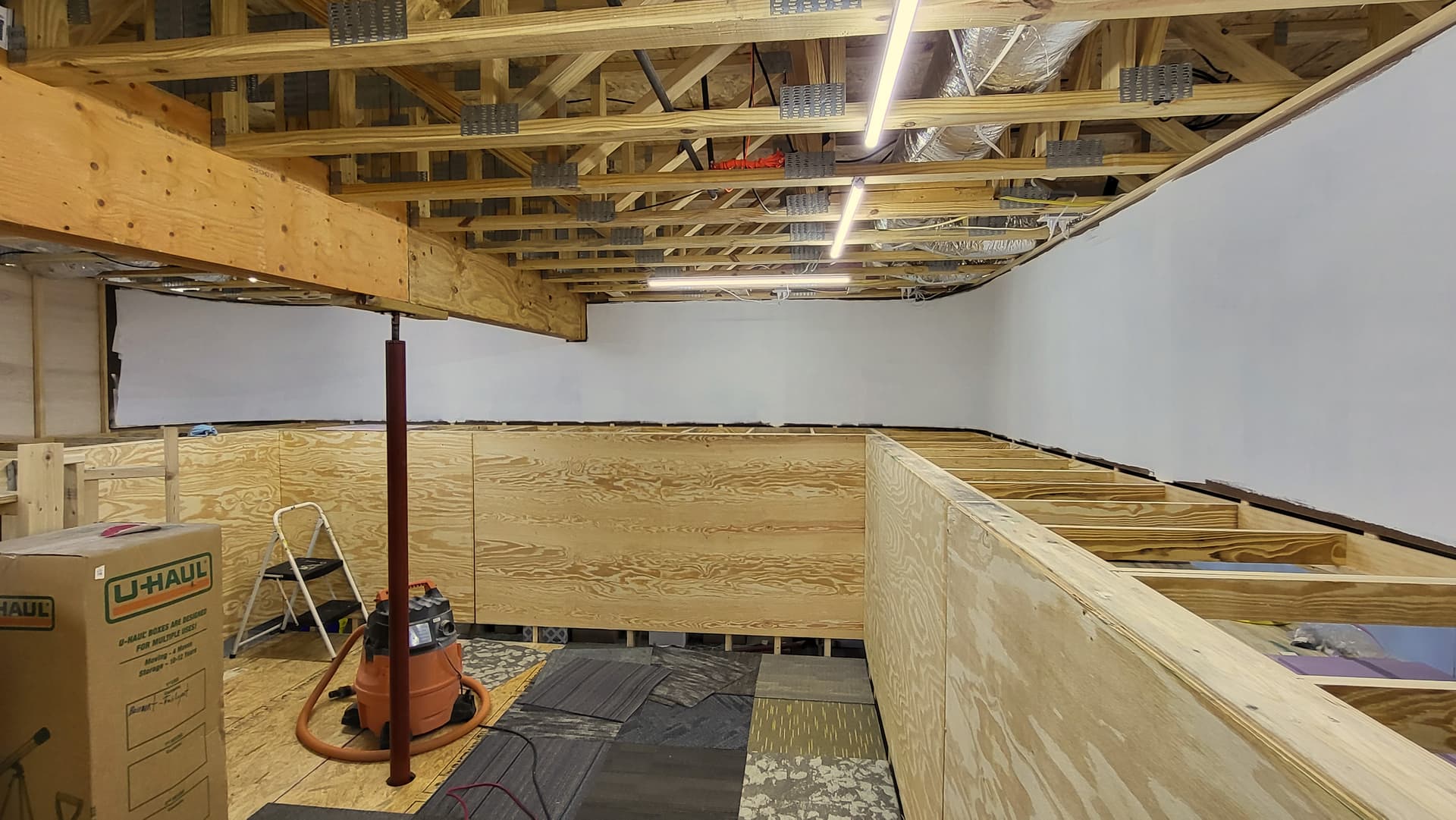

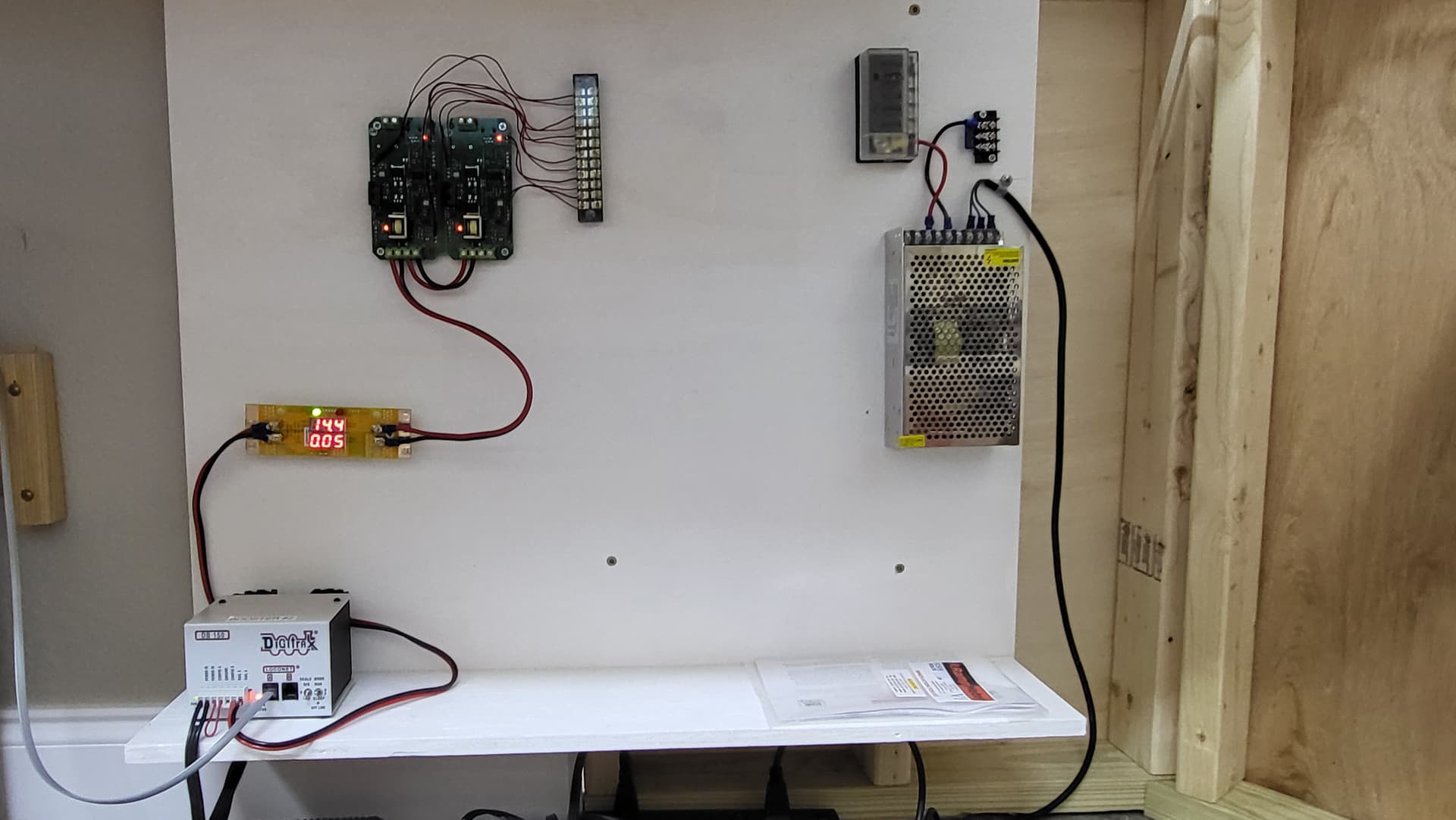

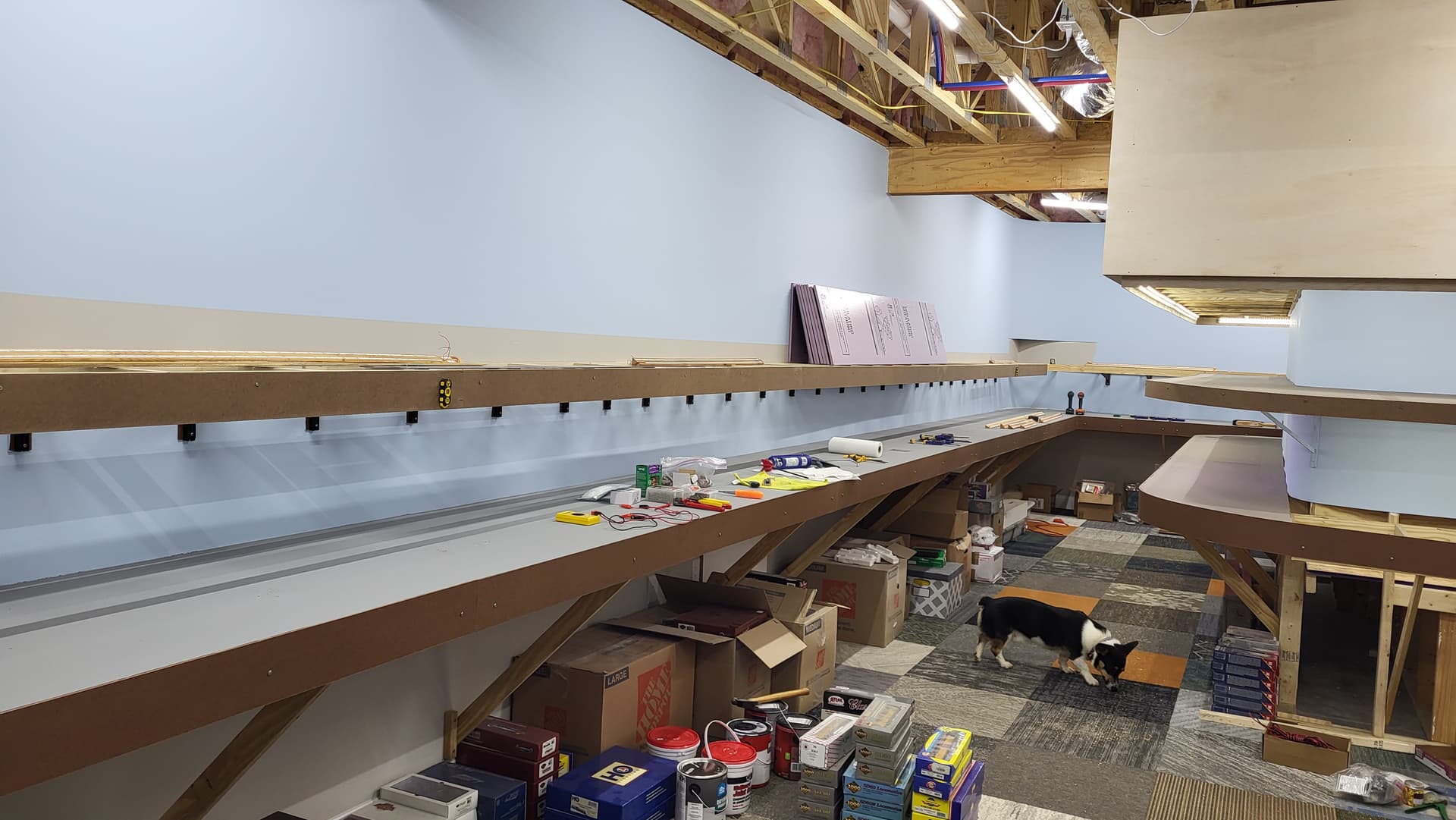

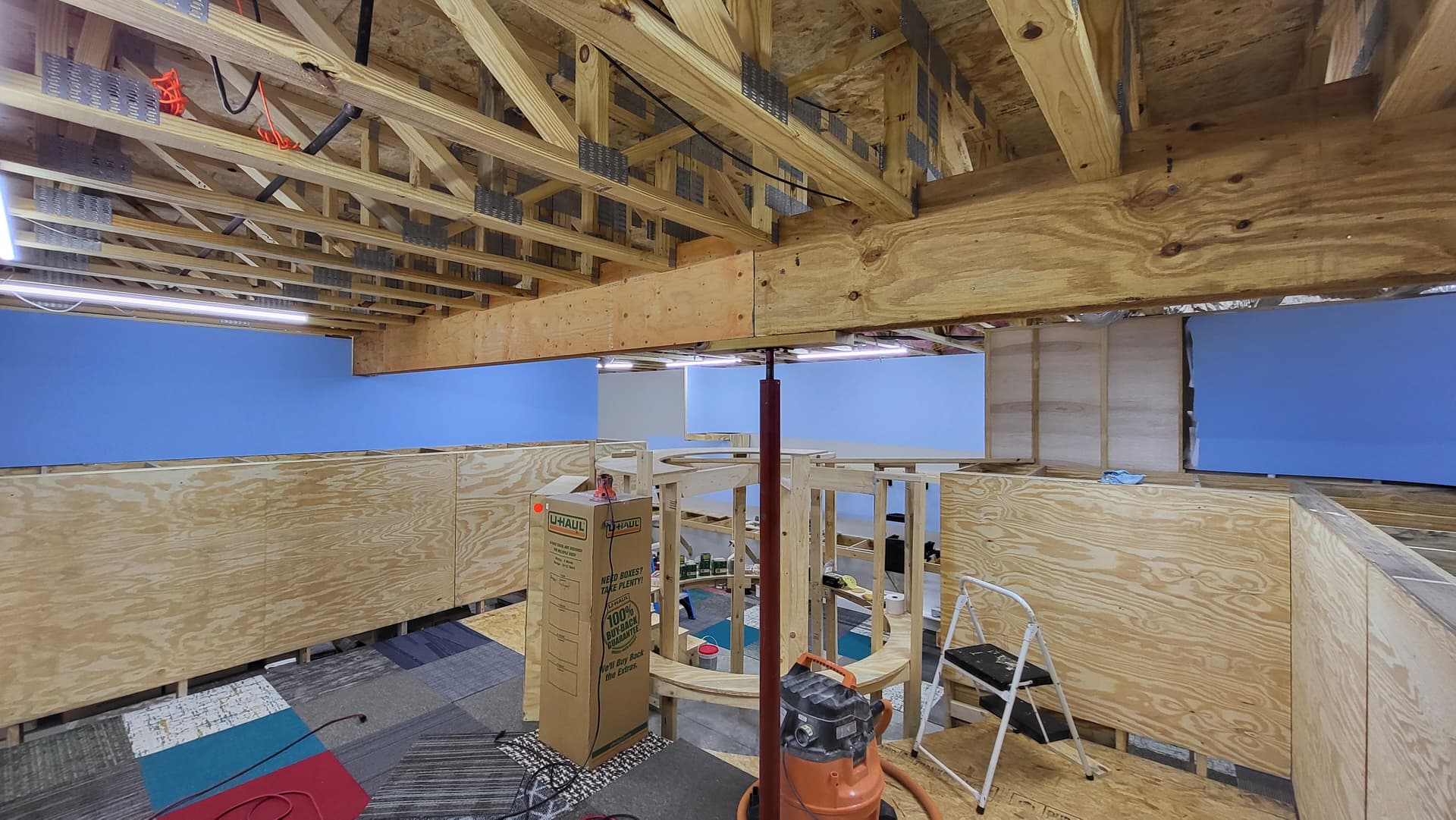

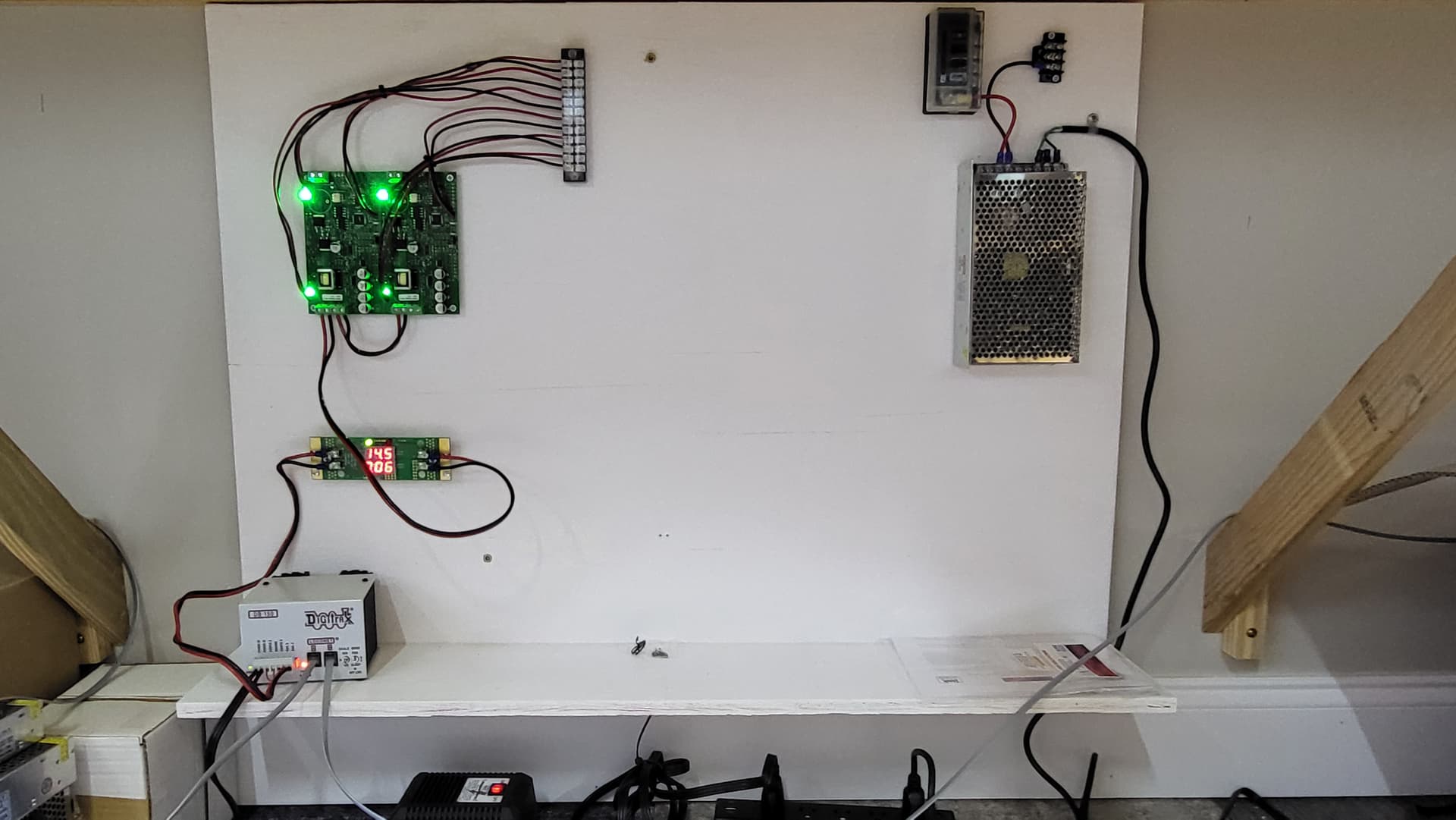

This is what a couple of the control panels looked like on the previous layout:

20180207_074101
20180207_0741011920×1440 354 KB

20180207_074314
20180207_0743141920×1440 335 KB

The Control Panel locations on the new layout. Each control panel location has a switched 20AMP outlet so the layout can be powered up/down with a single wall switch.

Basement-Mushroom1o_control_panels
Basement-Mushroom1o_control_panels1920×1718 337 KB

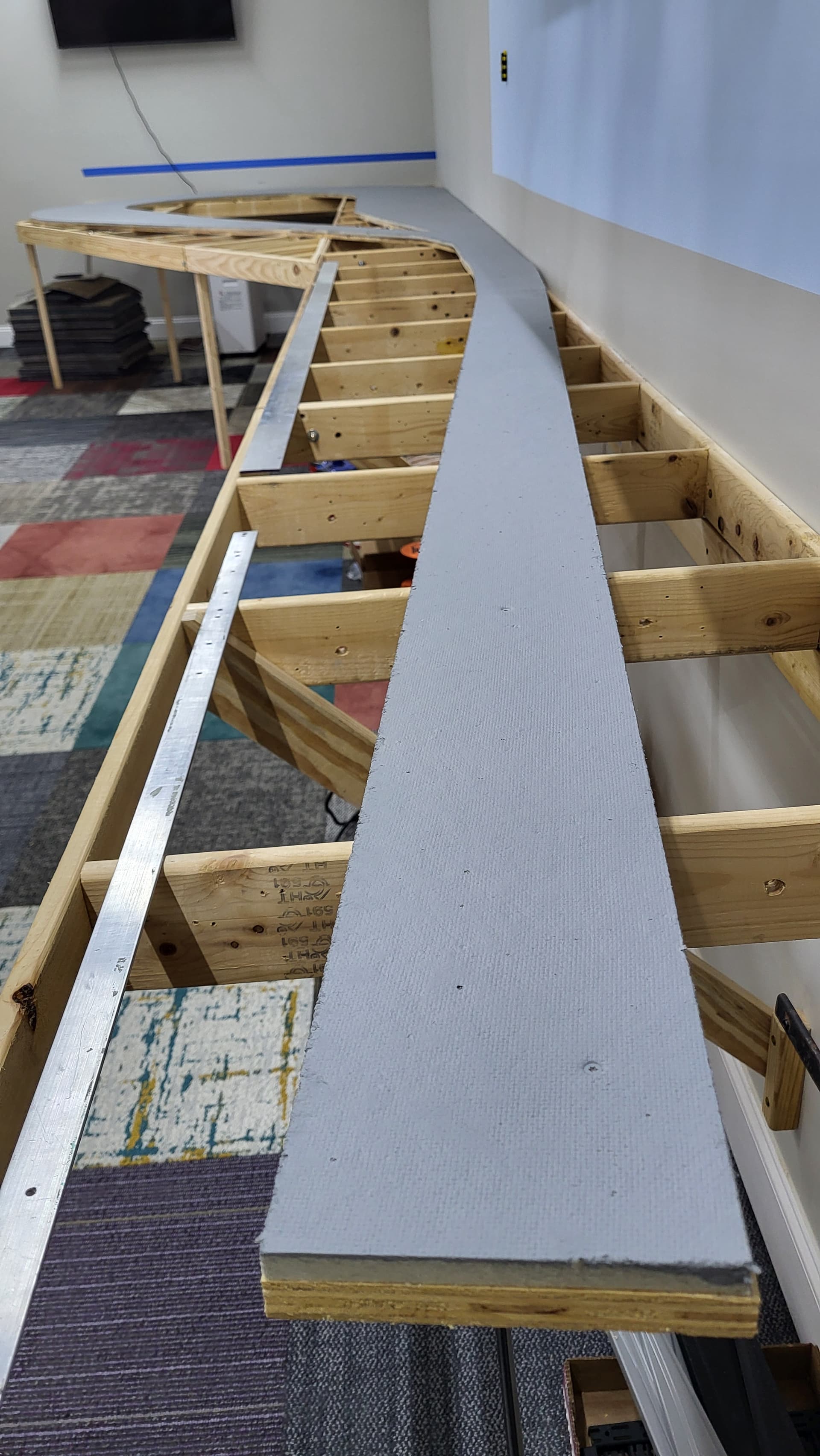

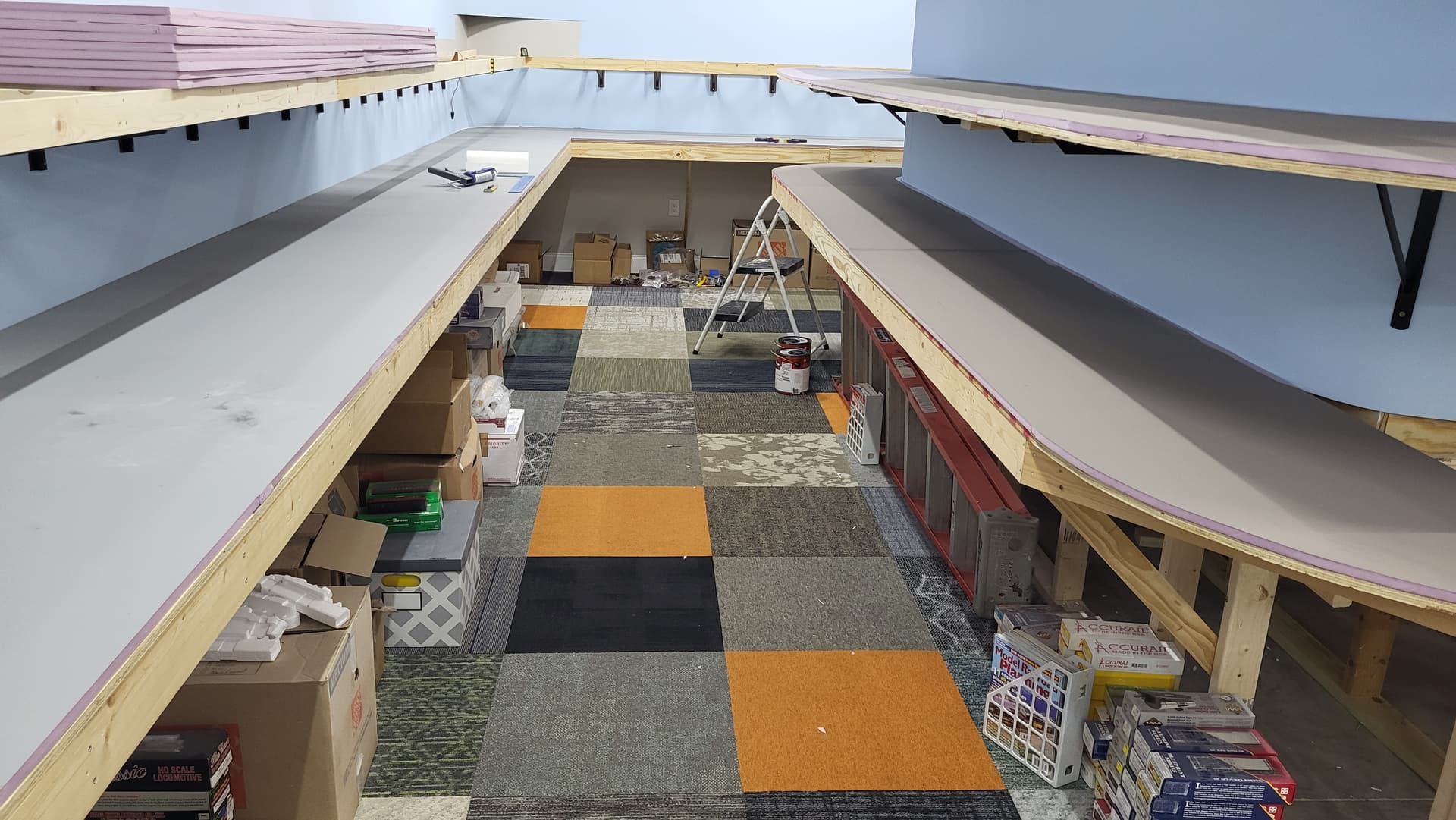

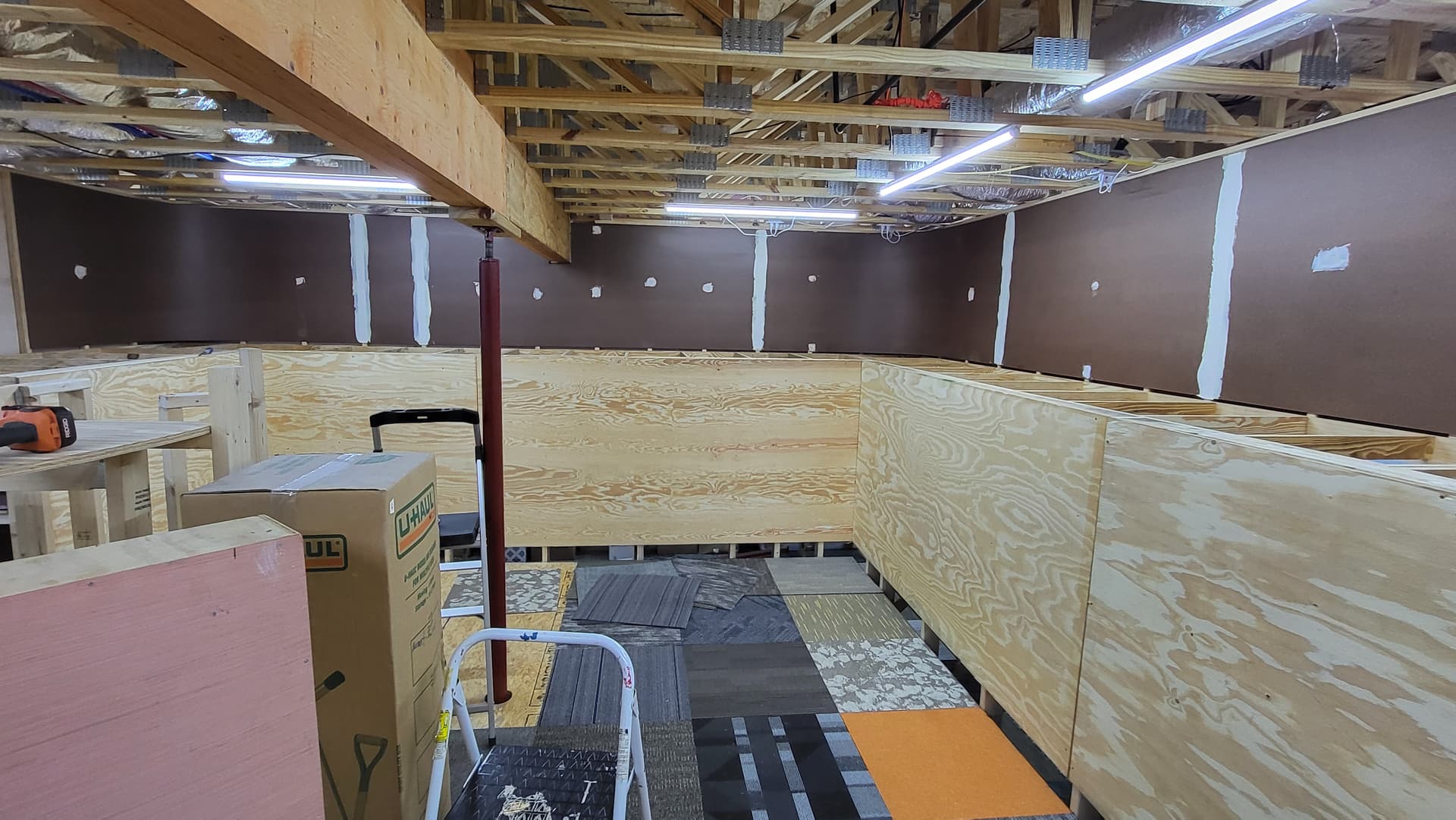

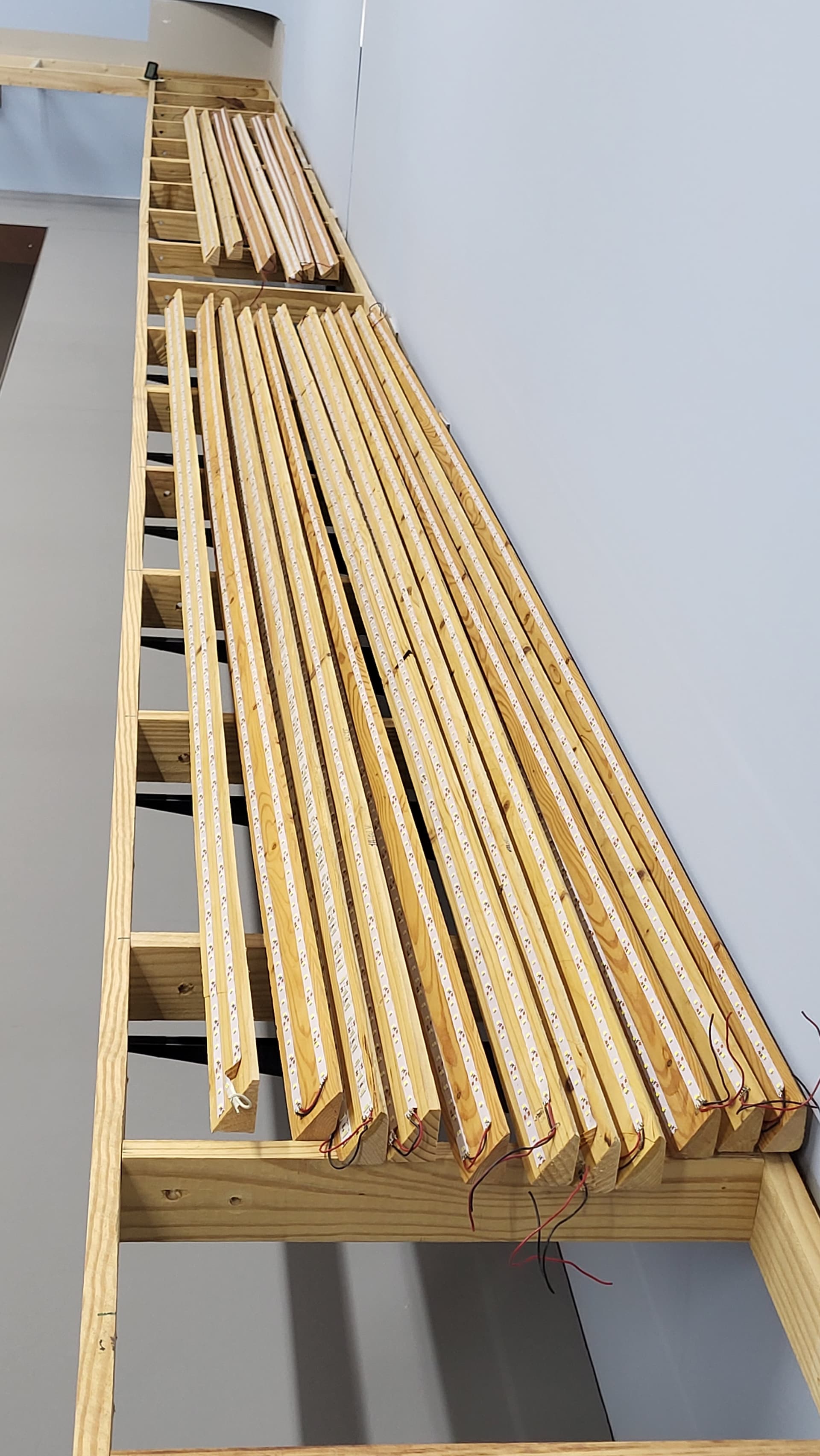

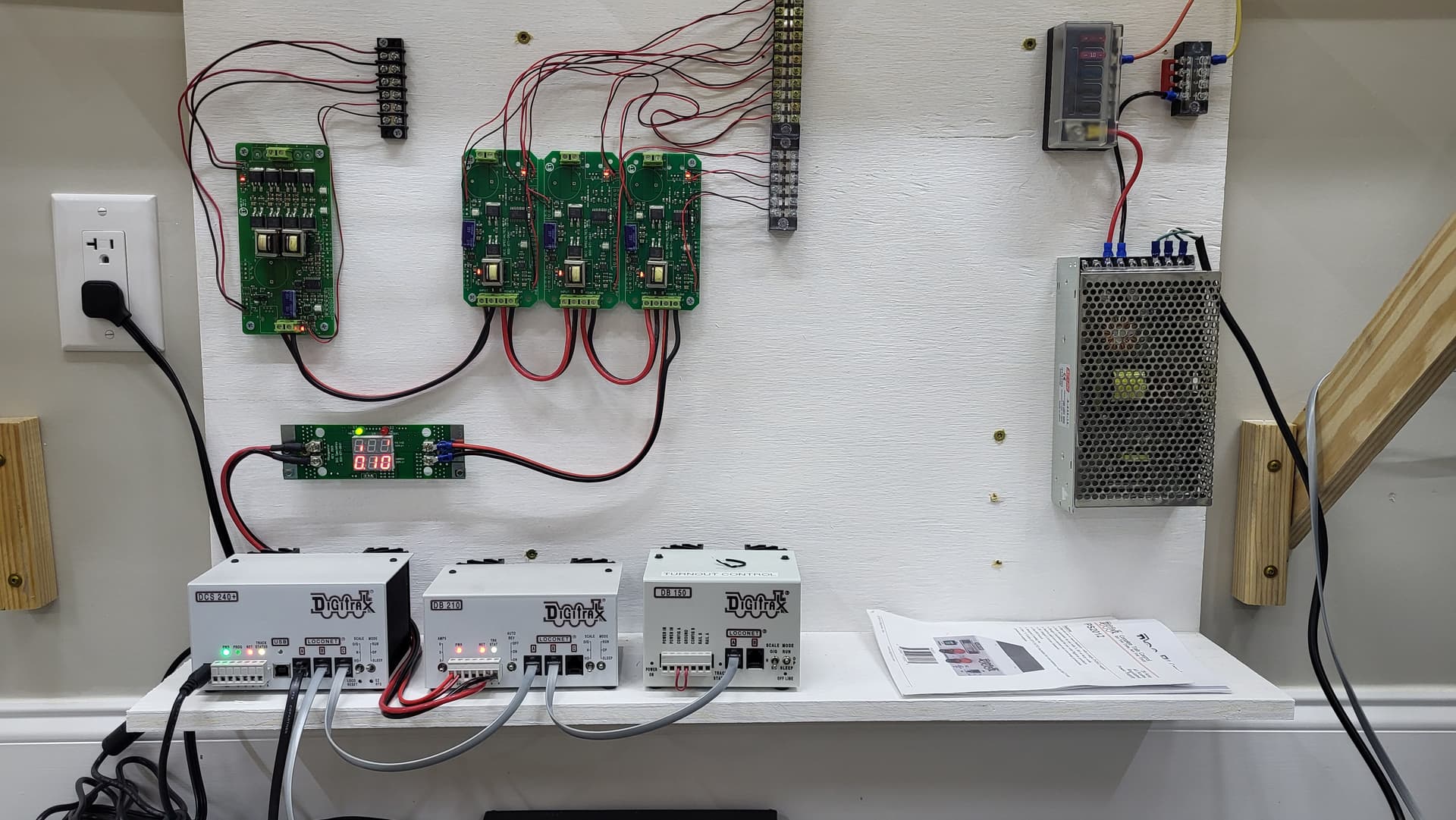

Control panels cut and painted. Each panel will have a 6" deep shelf on the bottom to place the DIgitrax DCC boosters/power supplies (like the previous layout).

20250510_082650
20250510_0826501920×1081 166 KB

The control panels will (tentatively) contain the following components:

#1)

  • DCS 240+ DCC Main Controller

  • DB150 track power

  • RRampMeter

  • PSX AR - reverse section track power breaker

  • PSX3 - track power breaker

  • 20A 12V power supply - layout lighting LED strips

  • 20A 12V power supply - structure lighting

#2)

  • DB210 track power (mainline, yard, loco service, middle level mainline)

  • DB150 turnout power bus

  • RRampMeter

  • PSX4 - track power breaker

  • 20A 12V power supply - layout lighting LED strips

  • 10A 12V power supply - structure lighting

#3

  • DB150 track power (mainline, passenger, middle level mainline)

  • RRampMeter

  • PSX3 - track power breaker

  • 20A 12V power supply - layout lighting LED strips

  • 10A 12V power supply - structure lighting

#4

  • DB150 track power (mainline, middle level mainline)

  • RRampMeter

  • PSX2 - track power breaker

  • 20A 12V power supply - layout lighting LED strips

  • 10A 12V power supply - structure lighting

#5

  • DB210 track power (Helix, lower level, middle level, upper level)

  • RRampMeter

  • PSX4 - track power breaker

  • PSX AR - upper return loop

  • 20A 12V power supply - layout lighting LED strips

  • 10A 12V power supply - structure lighting
