Use of 696 Track Trips on O gauge

Classic Toy Trains Forum
1

I’ve seen conflicting information on use of the 696 Track Trip on O gauge track. Want to use it on crossing sign. But not sure it fits. If not, what will work on O gauge to operate flashing railroad crossing?
Thank you
Bill

2

154C:

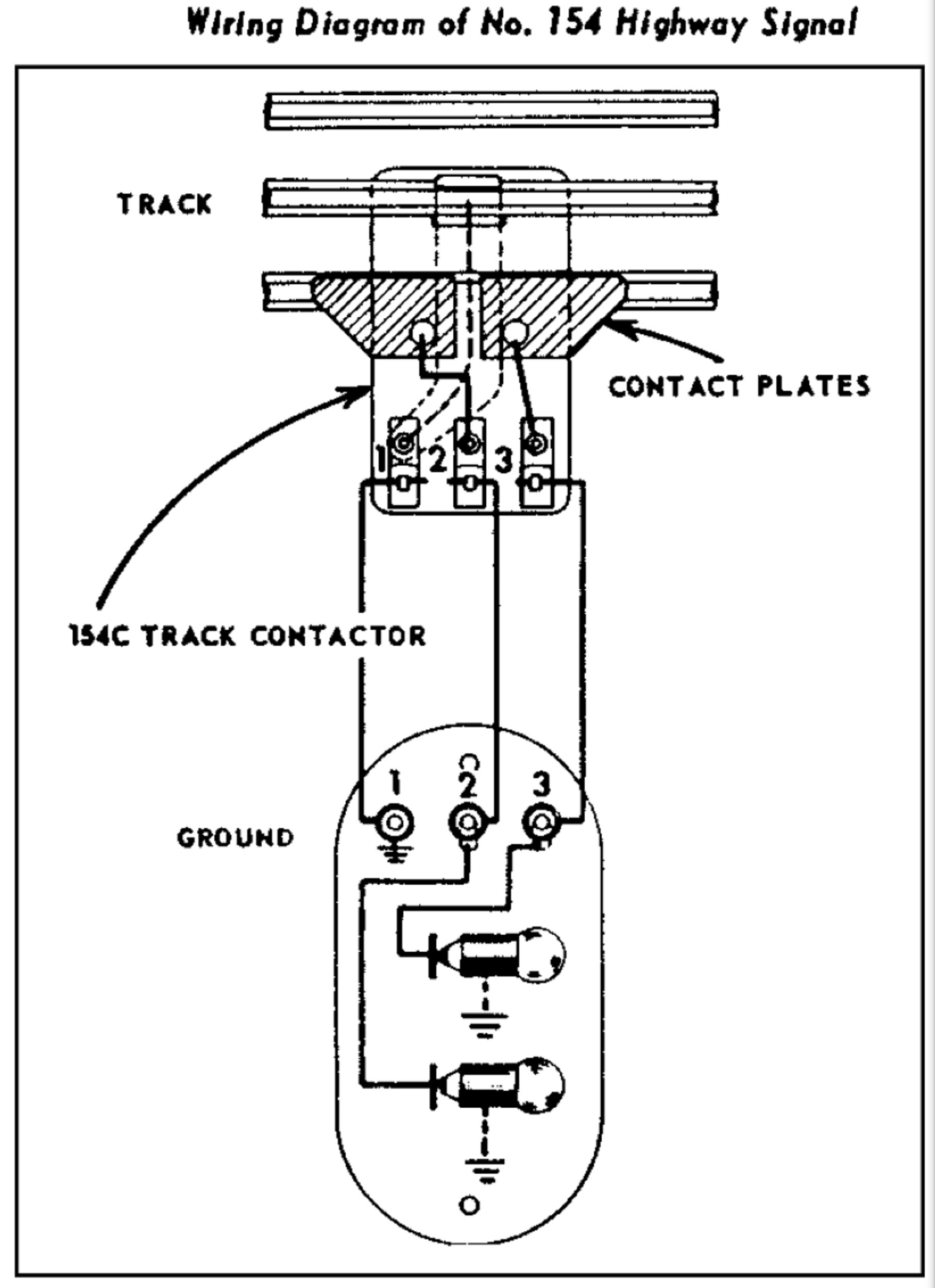

154 Wiring Diagram
154 Wiring Diagram1815×2501 266 KB

1 Like
3

Rob, late getting back. Had life interfering with fun.
This helped greatly. Have the initial crossing up and running.
Tks again
