I am using 3 color micro LEDs in my target signals. How do I wire a dispatcher panel to mirror those signals, using 3 color LED Thanks

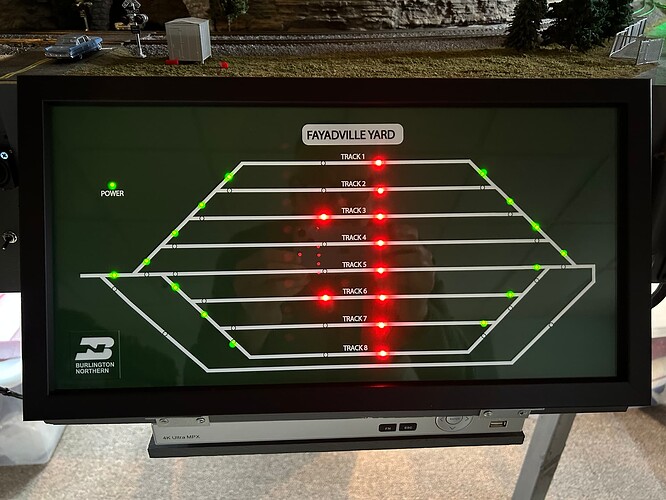

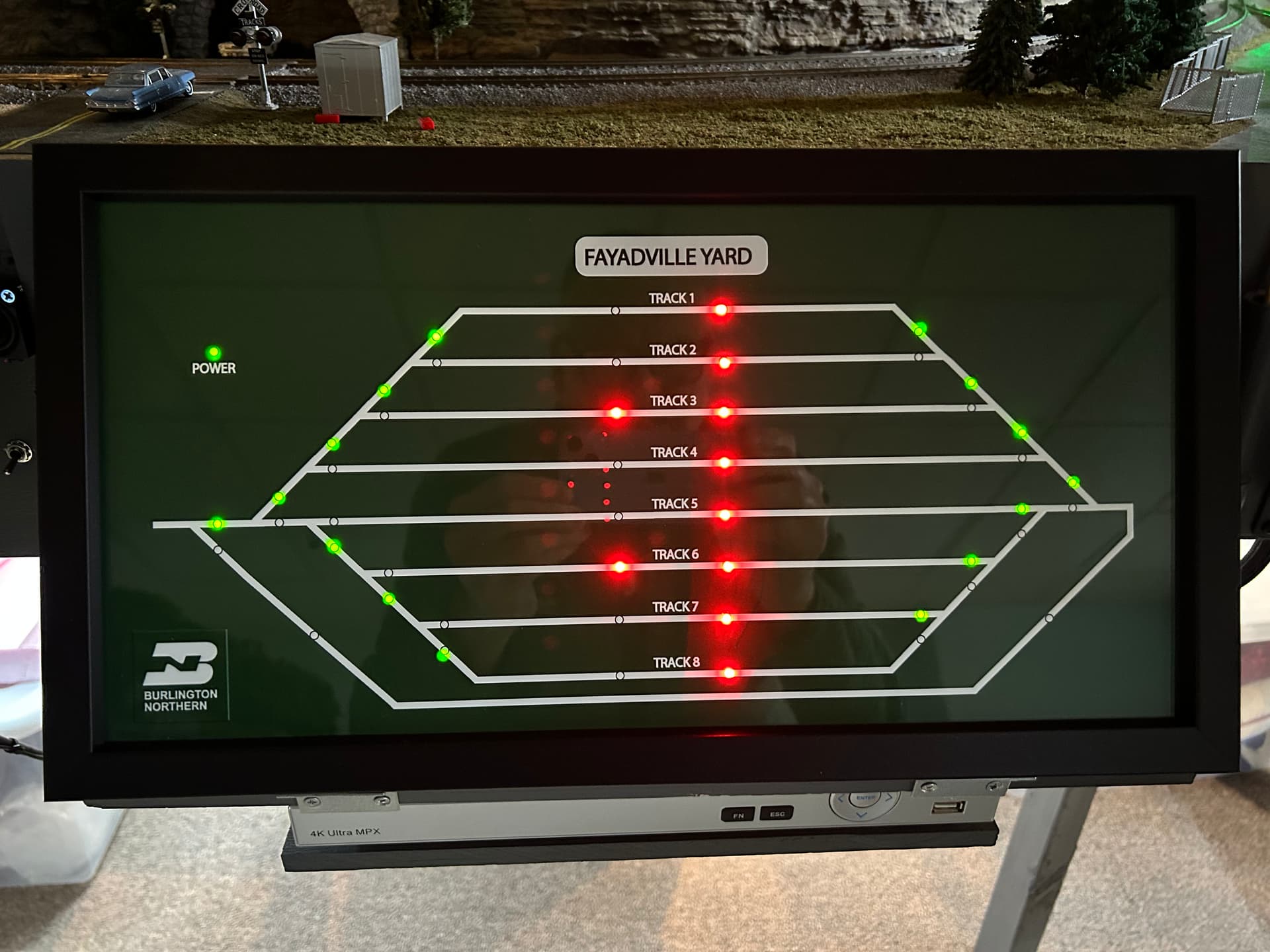

Andy, I used SMD’s (surface mount LED’s) when I did my last panel that utilizes Berrett Hill Touch Toggles. I just scotch taped the SMD’s to the back of the panel schematic, which was printed on a heavy paper. They shine through nicely. In fact, they are a little too bright, but they work. The red lights are the SMD’s. I bought the pre-wired version. Though mine are red, I would assume you can find 3 color SMD’s.
Regards, Chris
2 Likes
wouldn’t you just add wires in parallel with the actual signals to the dispatcher panel with similar 3 color LEDs?
