Bachman HO 4-6-0 dimensions

Model Railroader General Discussion (Model Railroader)
1

Hey Y’all,

I’m looking for dimensions for the cab sides and tender sides of the HO Bachmann 4-6-0, as I am trying to get custom made decals.

Thanks!

2

Cab sides are 1". Tender side on Spectrum 63" driver version with the USRA tender is 5" long.
I wasn’t sure which version you were looking for.

Scott Sonntag

3

Sorry I didn’t clarify, I was looking for the smaller driver variant with the smaller tender
The person making the decals uses metric, so an exact metric measurement would be amazing.

Thanks

4

ok, metric it is. Cab is 25mm, large tender is 120mm. Sorry no help o the small tender.

Scott Sonntag

5

I appreciate the help, Thanks!

6

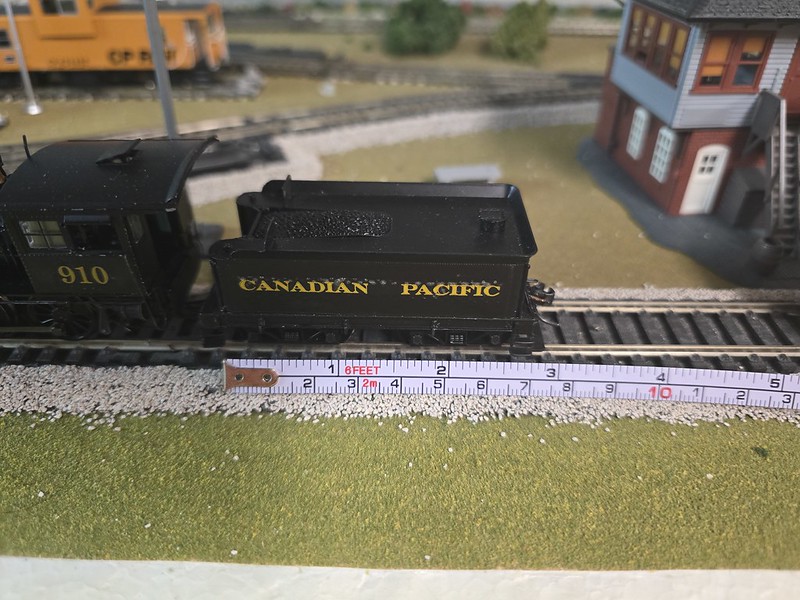

I measured mine and the small tender is right around three inches.

7

Small tender 76mm
