Lionel RW Transformer Repair

Classic Toy Trains Forum
1

Hello, I have an old Lionel RW Transformer and I replaced the Power Cord on it and light lens cover. The direction button was missing when I got it so I picked one up online. Is there supposed to be a spring under that Direction Button? There is nothing under it to hold it in place.

Thanks for any help.

2

No separate spring, the leaf of the switch is its own spring.

3

Thanks Rob, but that pic is of the Whistle Button. I’m talking about the Direction Button.

4

Works the same way. No spring.

5

Thanks ADCX Rob. Is that the same picture you posted originally? That is the correct button. I attached a picture of mine. If you notice the piece of the copper tab or contact doesn’t have the piece that protrudes up for the button to cli on. Would I need to replace that whole piece? Part # S-18? Thanks for the help!

https://www.flickr.com/photos/199858702@N04/53460620277/in/dateposted-public/

6

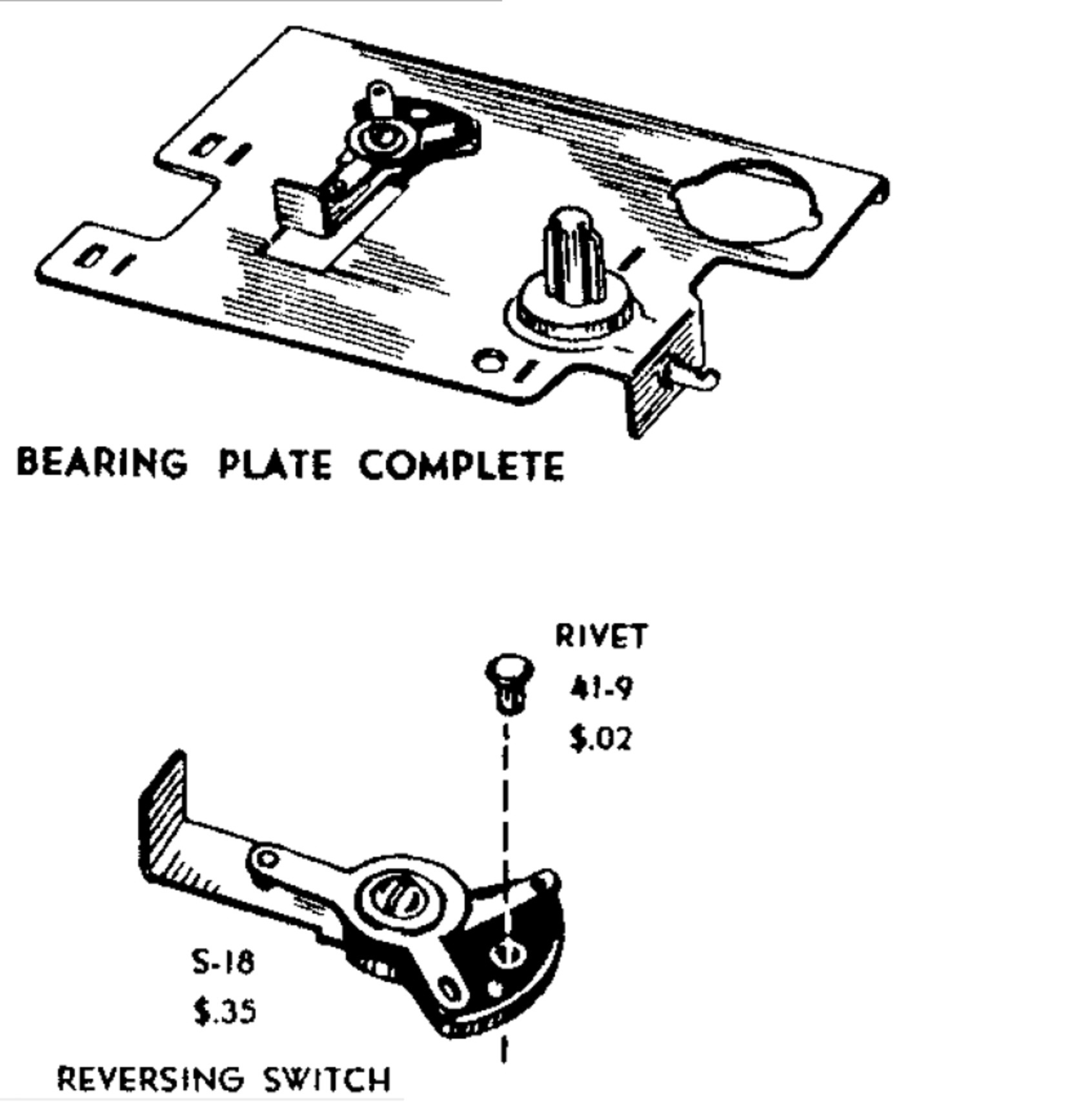

I switched to the direction button view for you.

S-18 is available HERE at The Train Tender for $4.

7

Thanks Rob, I emailed him.
