I purchased a 06-2315 coaling station to add an accessory to my O gauge layout. I followed the directions actually two different sets of directions. I came up with something that partially works. When I use the up direction on the lever on the controller nothing happens. When I use the down direction on the lever on the controller the gondola comes up when it gets to the top it gets stuck and I have to unravel the lines and bring it down manually. The lever for the dump and load works. The magnet in the track works as it opens the car and the coal flys out into another car or pan. The help I need is how to get it totally functional. I need the up to go up and then down and I think it’s in the wiring. If I could add a photo it would be easier to understand.

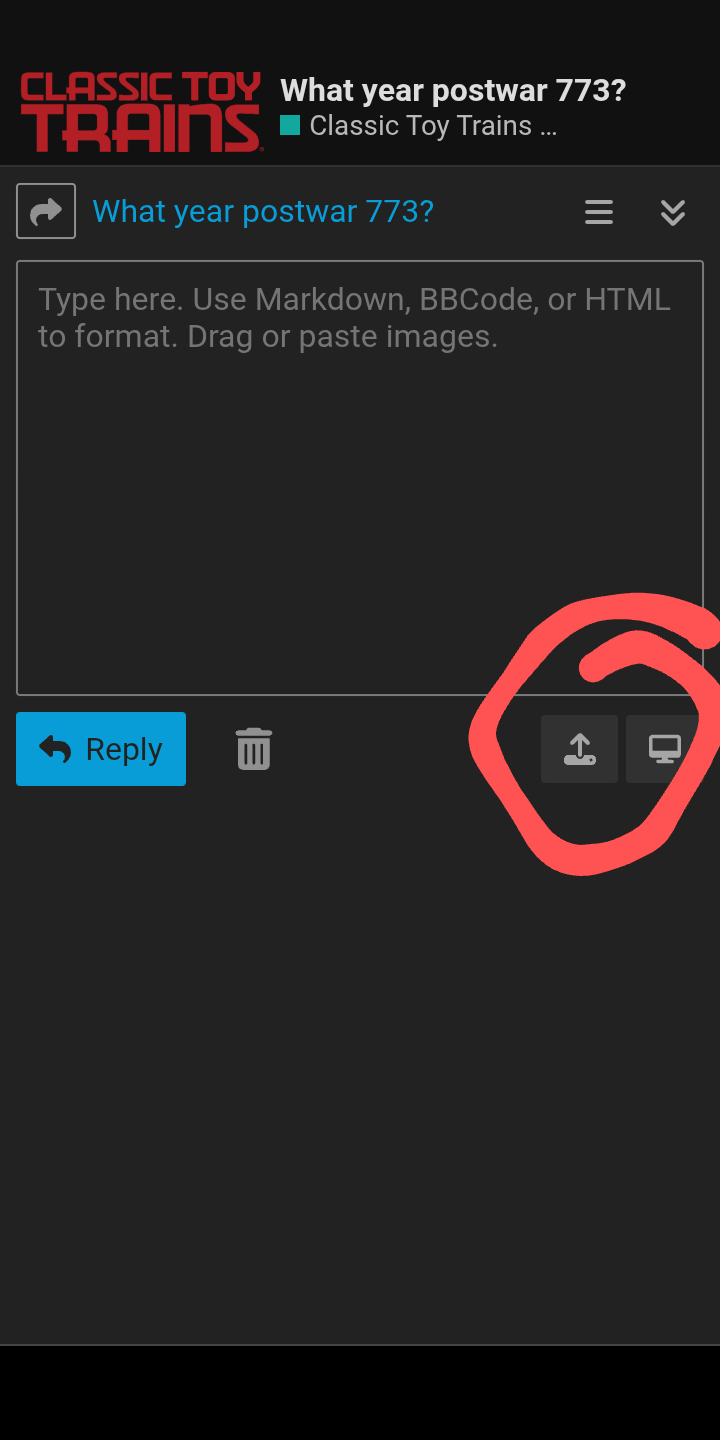

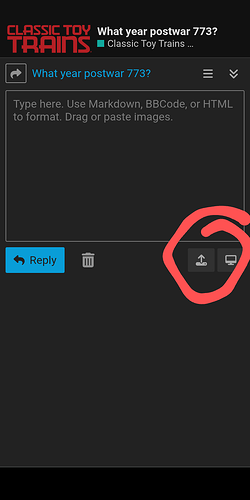

. Use this button to upload photos:
From AI. Also, there is a diagram available at Lionel Support.
Wiring Diagram for Lionel 06-2315 Coaling Station
General Wiring Information
The Lionel 06-2315 Coaling Station requires specific connections for proper operation. The wiring setup typically involves connecting the station to a controller and an auxiliary power source.
Wiring Connections
| COMPONENT | CONNECTION |
|---|---|
| Coaling Station | Connect to the controller’s output wires |
| Controller | Connect to an accessory transformer power |
| Gray Wire | Connect to the gray wire from the station (if applicable) |
| White Wire | Connect to the accessory transformer power |
| Double Wires from Station | Connect to accessory power and neutral |
Controller Wiring
- The controller for the 06-2315 uses diodes to convert AC to half-wave DC for motor operation.
- Ensure that the gray wire from the controller is connected correctly to avoid issues.
- If using multiple stations, consider a toggle switch to alternate between controllers.
Troubleshooting Tips
- If the station does not operate, check for shorted diodes or incorrect wiring.
- A humming sound from the motor may indicate a wiring issue or a malfunctioning controller.
For detailed diagrams, refer to Lionel’s official resources or manuals available on their website.
This is the combination of wiring that gave me the best results. The instructions that came with the accessory barely resulted in any response from the unit.

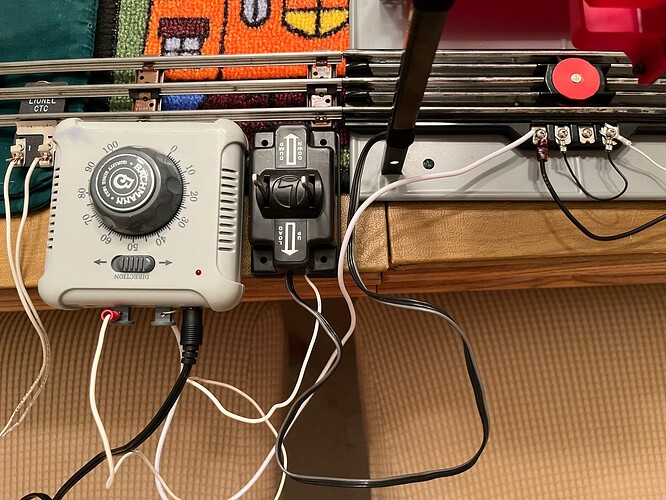

I don’t know anything about diodes. I’m trying to get the coaling station to totally function. I placed a photo of my last wiring combination. It gives me every function but the gondola. It raises up while I push the controller lever down. When it gets to the top it dumps the coal but it does not go down. I have to unwind it and lower the gondola manually.This is irritating. I want the entire station to work. Is there any way you can see my wiring and determine how to fix it.
I am using the diagram in the instructions plus the top 1/2 of the note addendum directions.
