Entirely replaced north no underground Haymarket Square Station by the northern portion of the Orange Line. We will look at the Main-Line Forest Hills -Everett line from North Station north to Everett, with a side view of the Main Steet Bridge over the Charles, a stop at Tomkins square - side-view from street level, many Sullivan Square pictures, and a look at Everett.
The Charlestown Elevated actually started south of North Station. at the portal north of Haymaket. Left-ti-right of the six tracks:
Elevated to Sullixan Squre and Everett
Elevatesubway d to Washing Sreet Tunnel and Forest Hills
Trolley-Subway to Lechemere Viaduct
Trolley-Subway to North-Station surface loop and surface Bunker Hill Street and Main Street streetcar lines to Sullivan Square
Reverse of above
From Lechemere Viaduct to Subway
Found I photo Iād taken of the portal with a train headed for Everett and 2 PCCs from Lechmere:

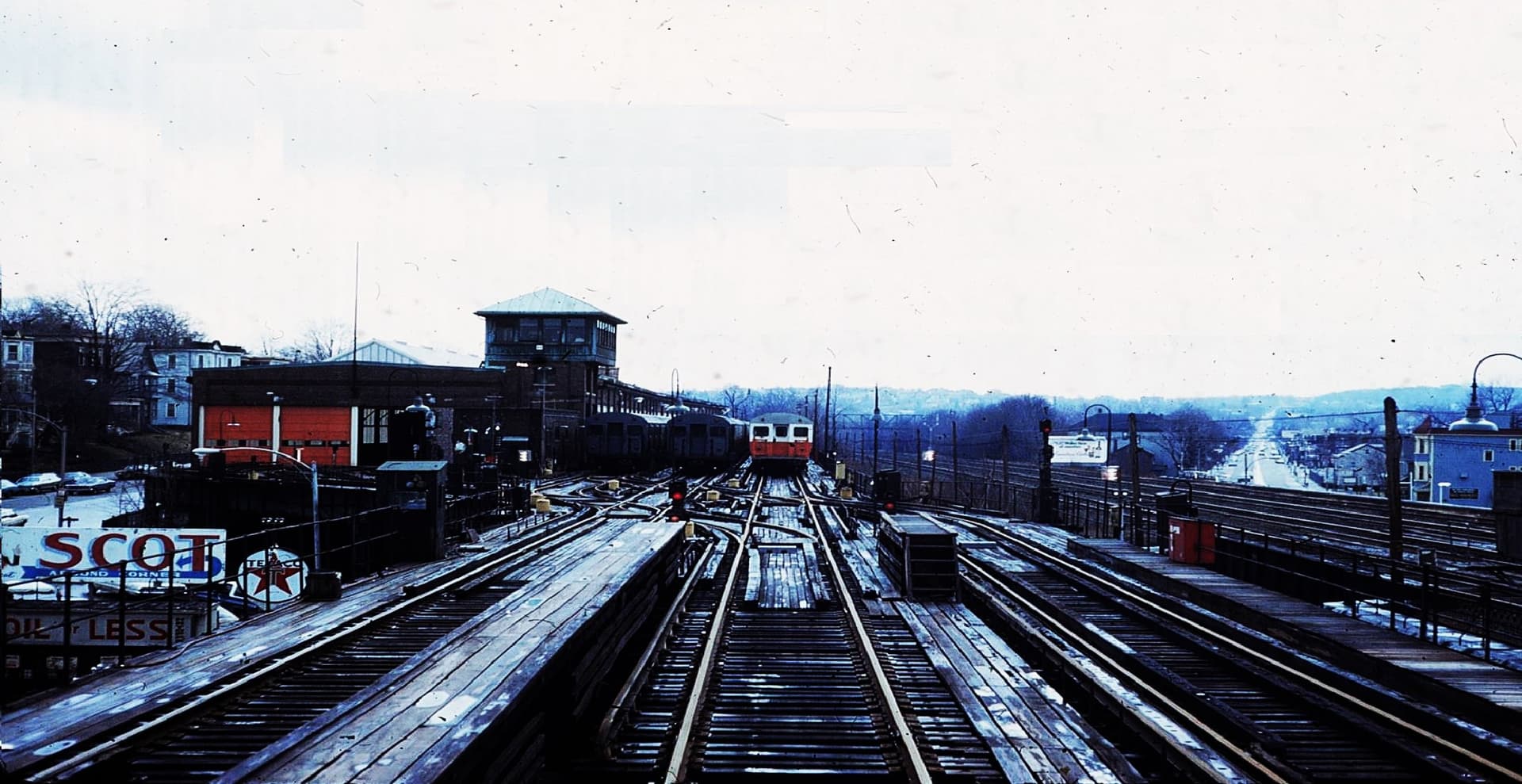

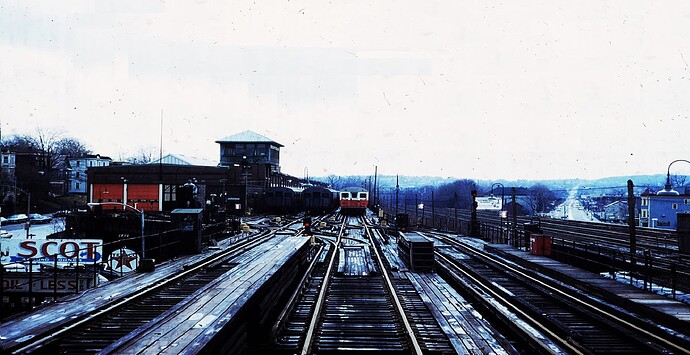

Here, we are on an Everett-bound train just after leaving Sullican Square Station, and we are seeing the rear of a Forest-Hills-bound train and the ramp to the surface used by the Elm Street Fellsway streetcars and in the past also by the Eastern Mass. cars dfor Stoneham:
